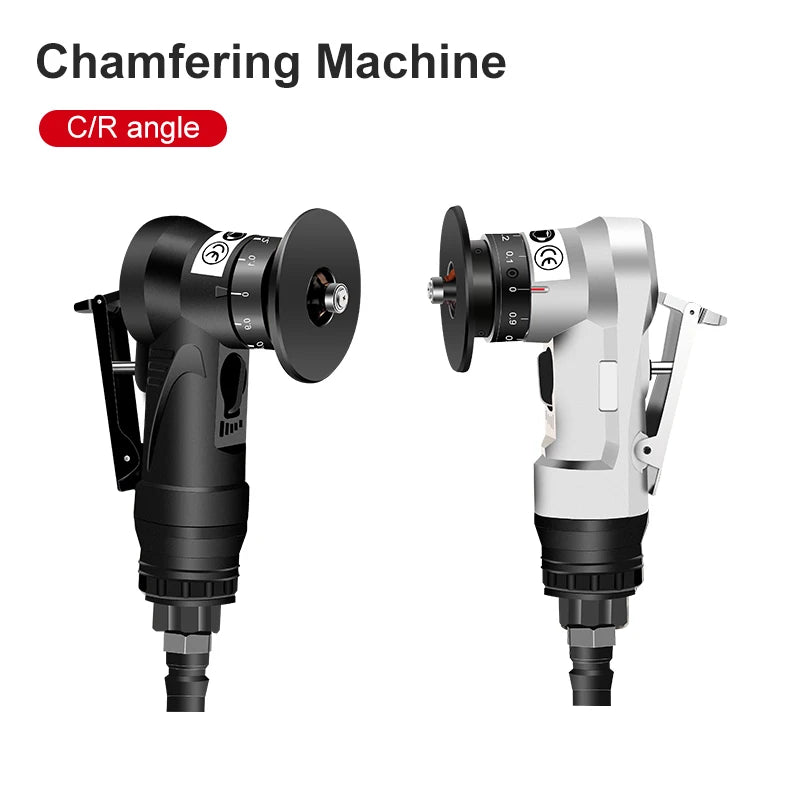

SPECIFICATIONS

Adjustable depth: 0.1-- 0.9MM

Average Air Consumption: 0.15 m³/min

Brand Name: HYCNC

Certification: None

Chamfer Angle: 45°

Chamfer aperture: >7MM

Chamfering capacity: CO.1-C1.5

Idle speed: 30,00rpm

Model Number: Pneumatic chamfering machine

No-Load Speed: 30000RPM

Origin: Mainland China

Product Name: Mini chamfer

Product colors: Black and silver

Size: 150mm

Type: Other

Usage: Home DIY

Use pressure: 0.6MPA

keyword 01: Mini Chamfer Deburring Tools

keyword 02: Chamfering-tool

keyword 03: MINi-Chamfering-Machine

keyword 04: Pneumatic-chamfer

keyword 05: Trimming-machine

keyword 06: Trimming-tool

Properties:

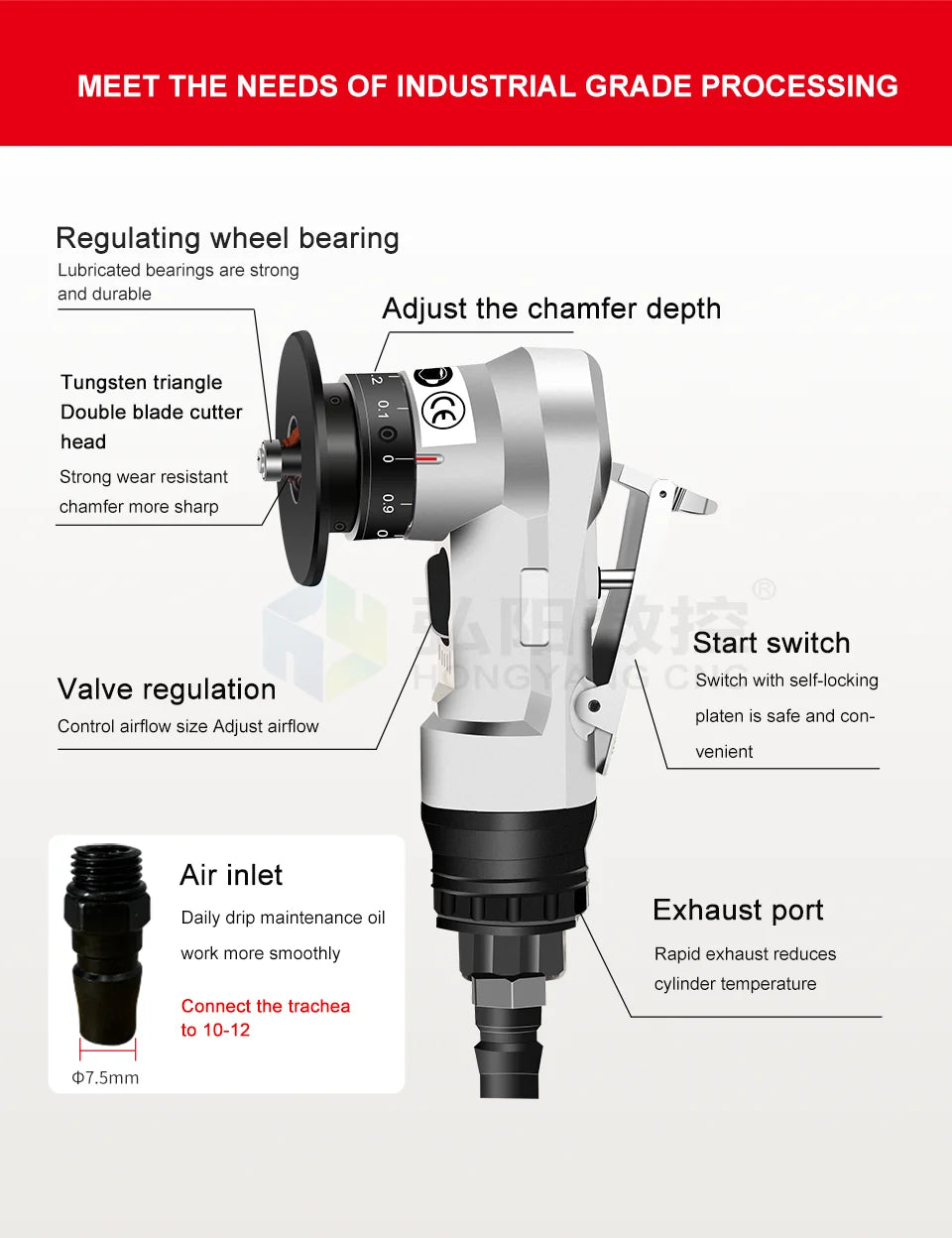

Double head design, adjustable depth, automatic clamping.

The fixing screw is stable and not easy to fall.

1/4 inch air inlet with metal filter to prevent foreign objects in.

Small body, easy to use, quickly cut right angles, rounded corners.

Five-speed intake air volume adjustment, change speed to improve blade lifeand the air inlet can be adjusted freely, make the operation easy and convenient.

Pressure plate type safety protection switch can reduce unnecessary injury.

Alloy steel baffle, safety buckle, metal push switch, ensure safe use.

The blade is removable and easy to use. Unique design makes the surface smooth.

We have two free wrenches for you!Burr free

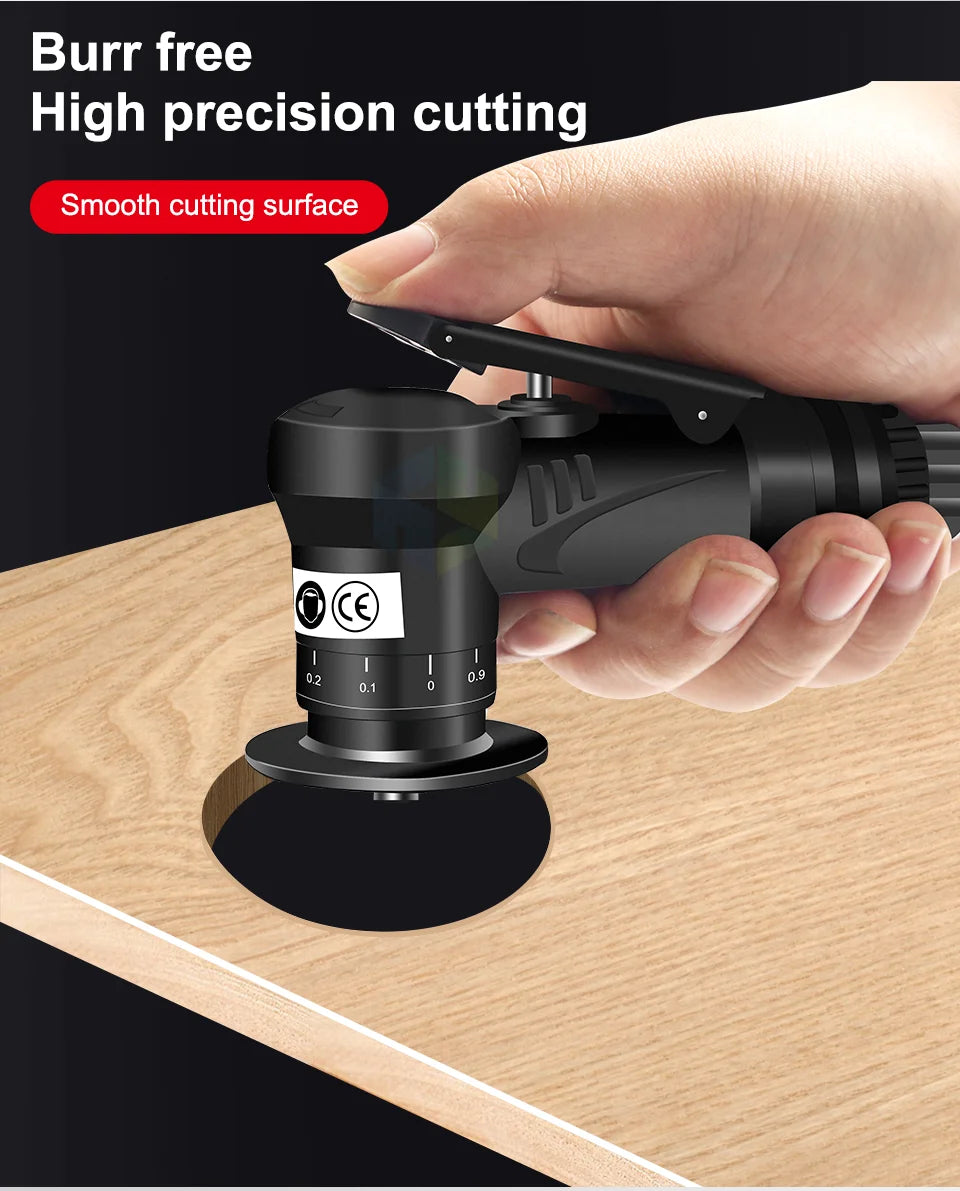

High precision cutting

Smooth cutting surfaceSuitable for all kinds of irregular chamfer

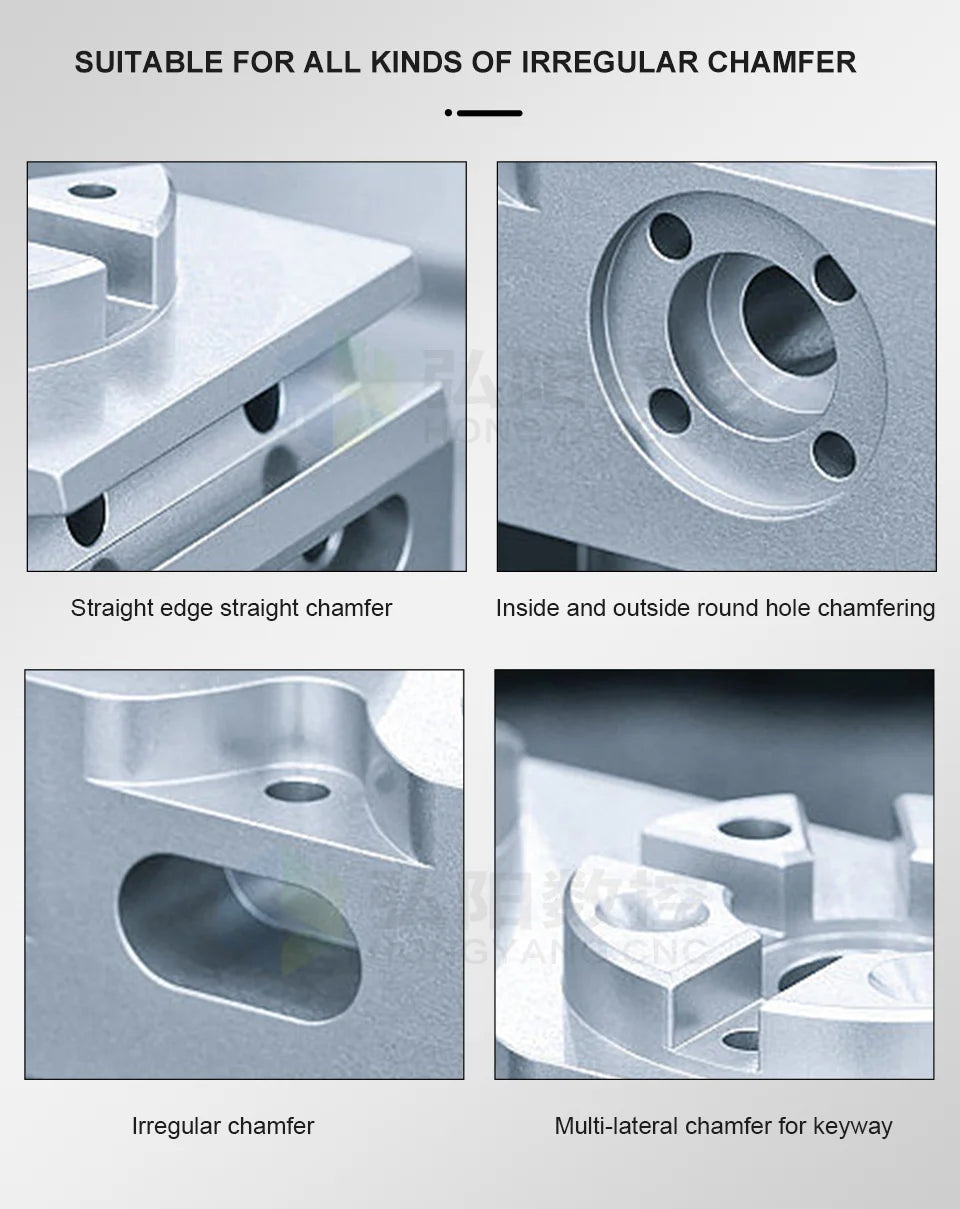

1.Straight edge straight chamfer  2.Inside and outside round hole chamfering  3.Irregular chamfer  4.Multi-lateral chamfer for keyway

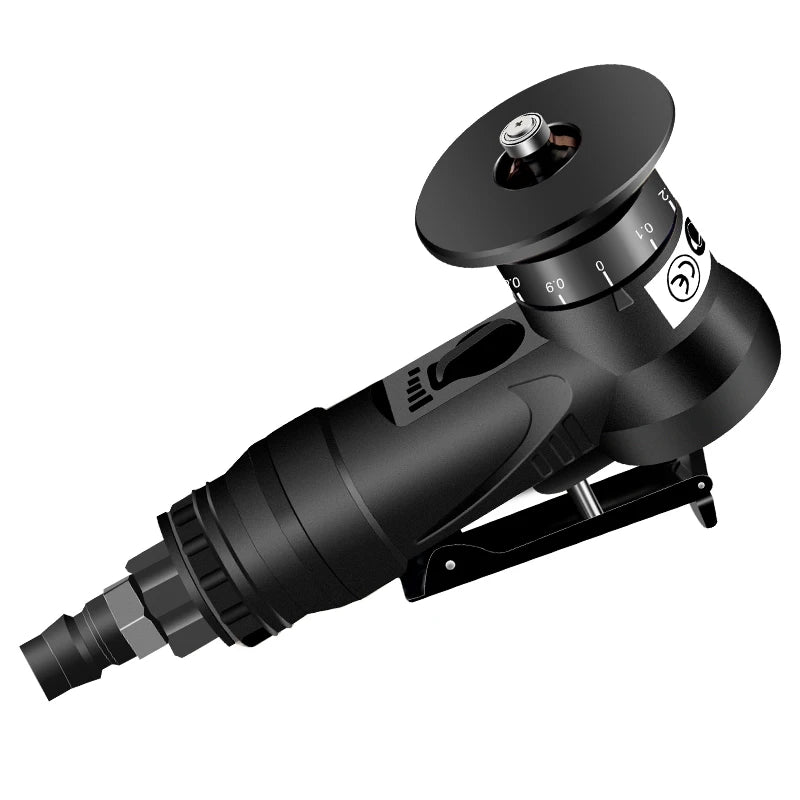

mini body is easy to operate

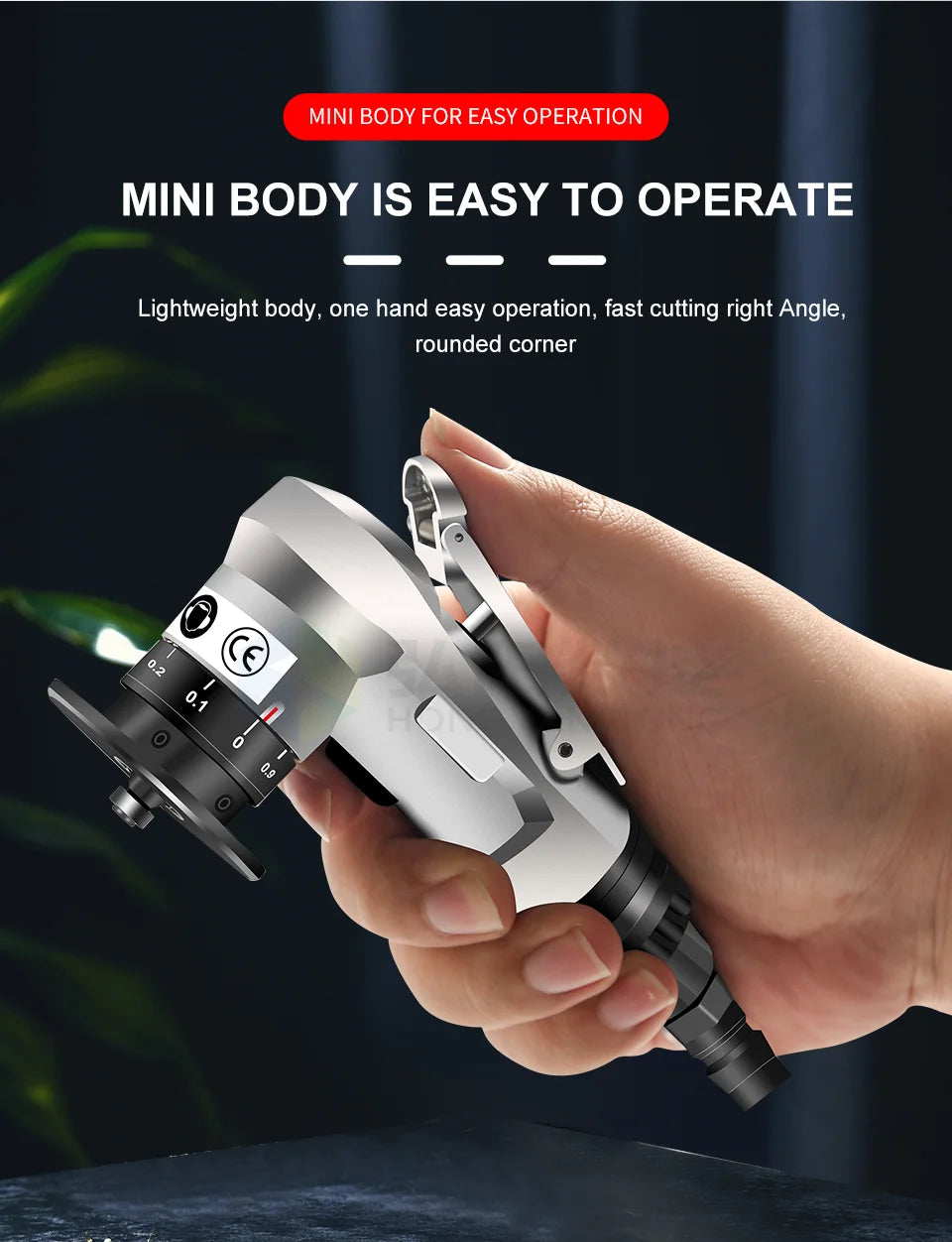

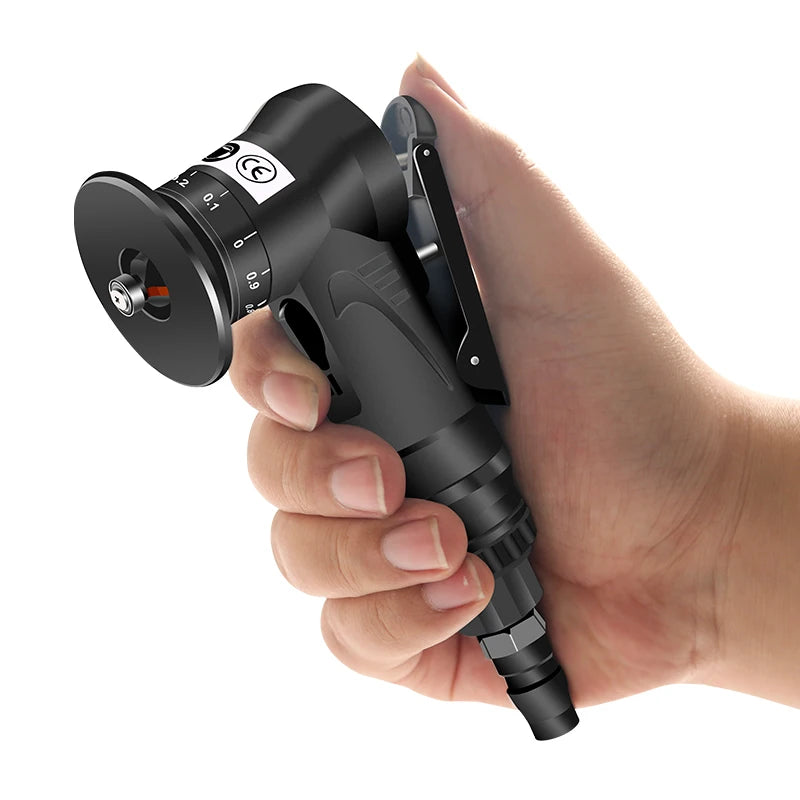

Lightweight body, one hand easy operation, fast cutting right Angle,
rounded corner

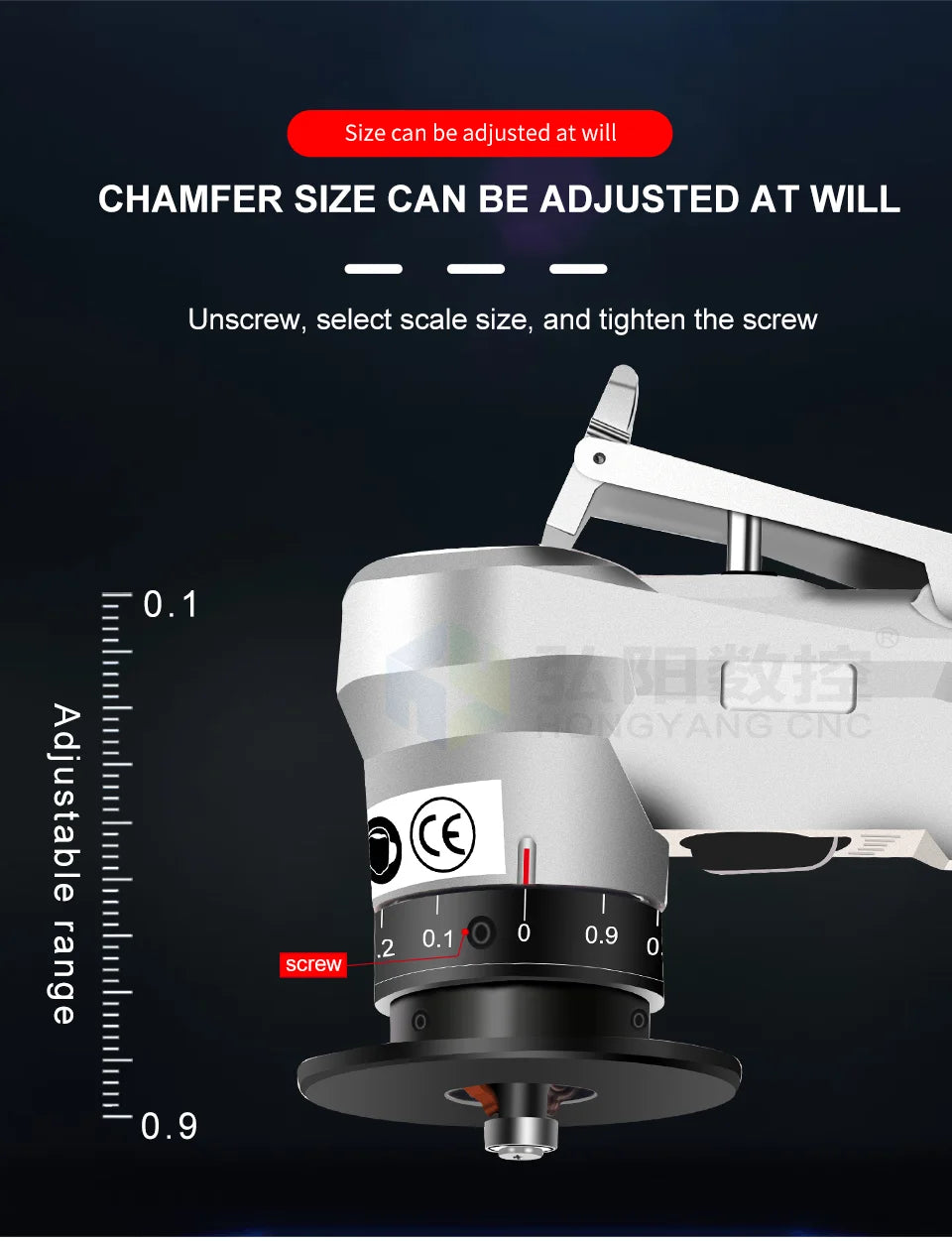

Chamfer size can be adjusted at will

Unscrew, select scale size, and tighten the screw

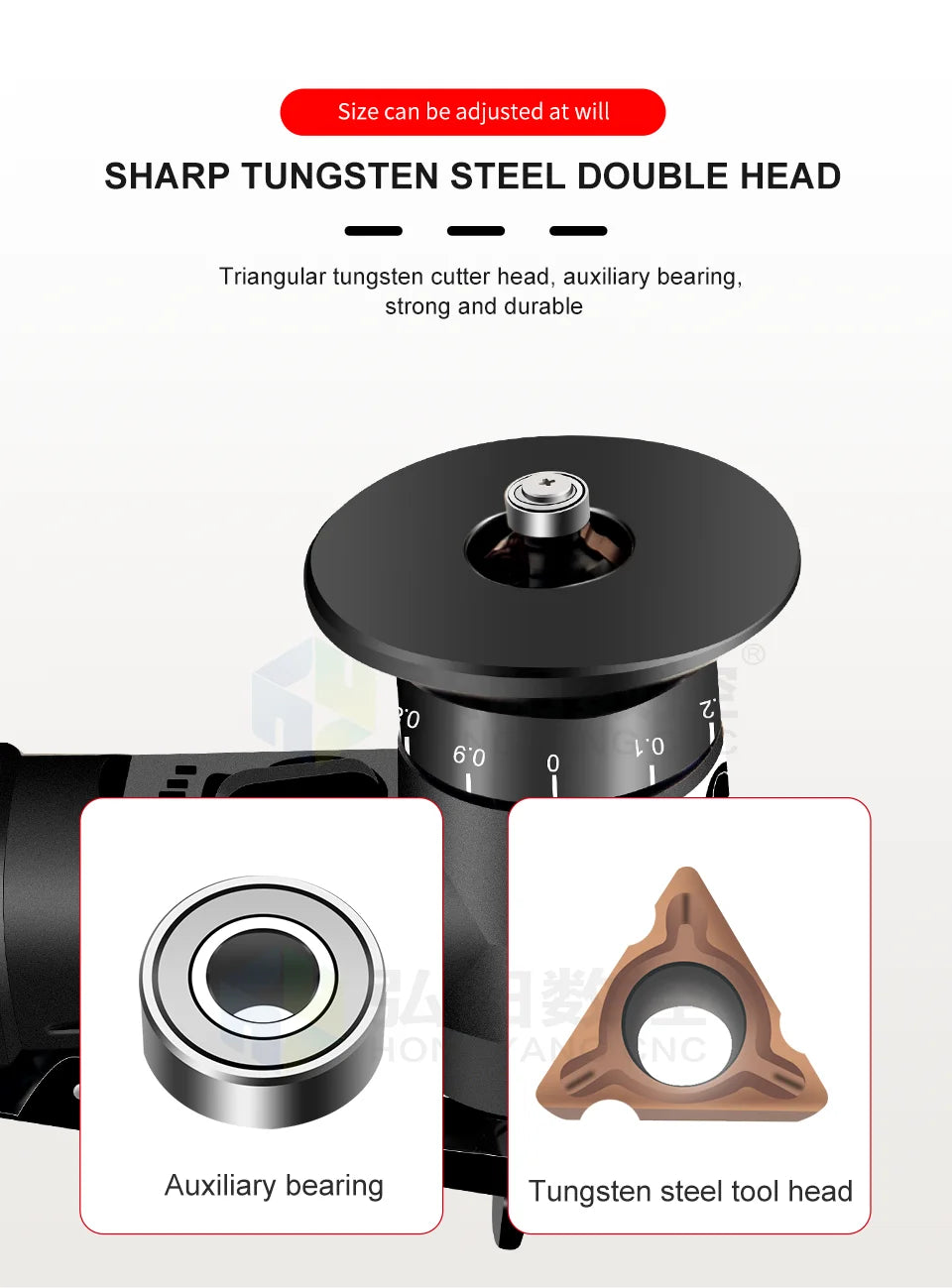

Sharp tungsten steel double head

Triangular tungsten cutter head, auxiliary bearing,
strong and durable

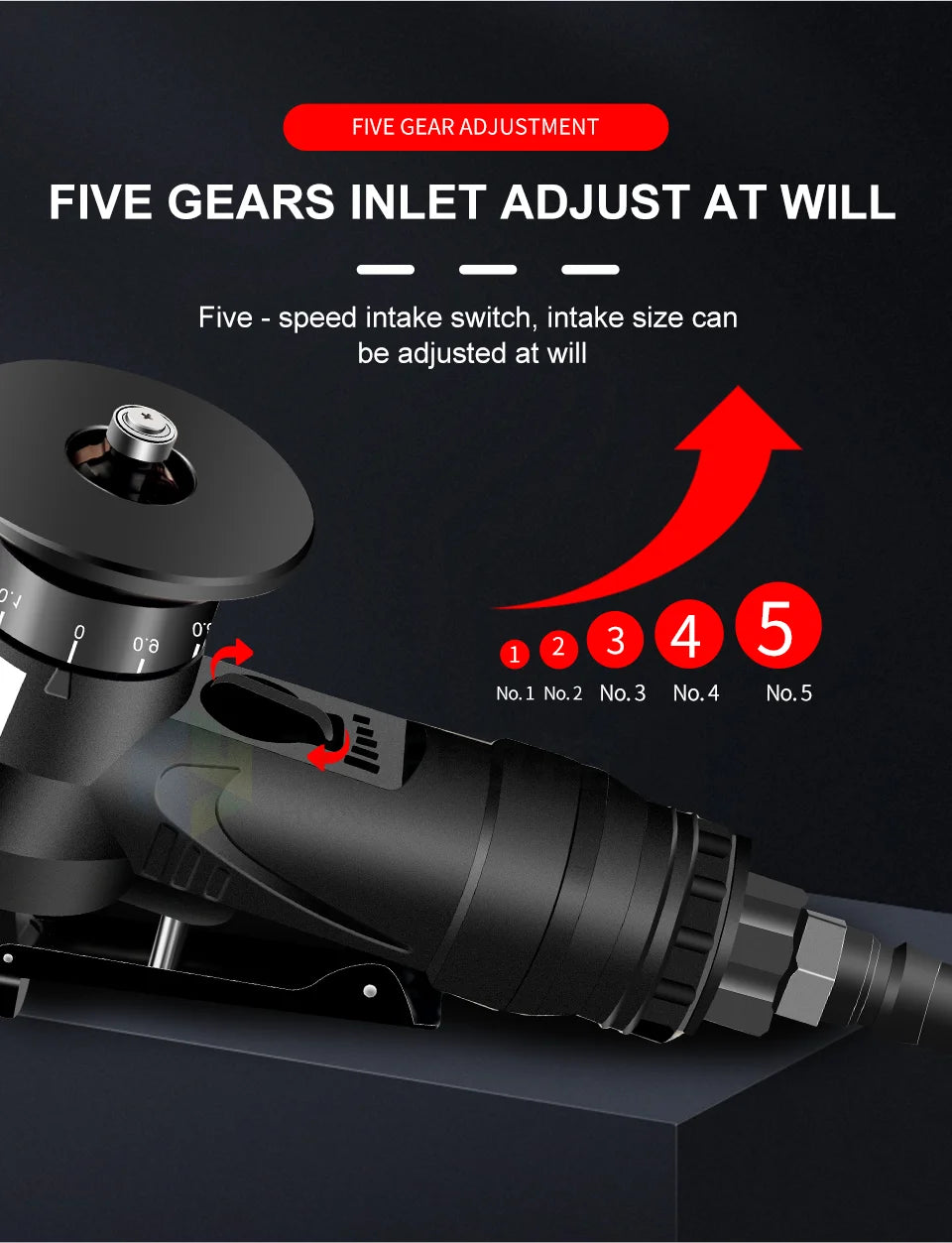

Five gears inlet Adjust at will

Five - speed intake switch, intake size can
be adjusted at will

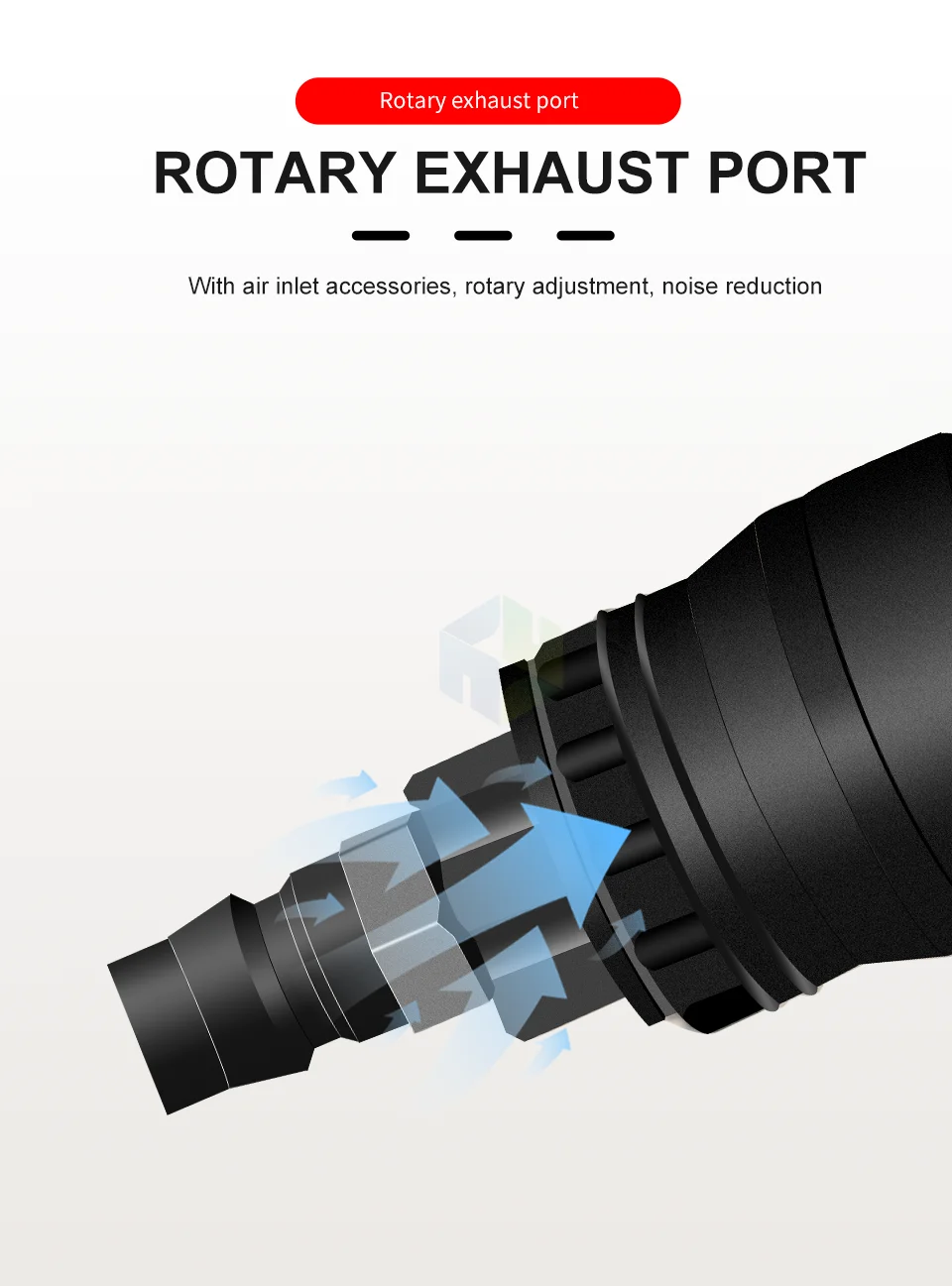

Rotary exhaust port

With air inlet accessories, rotary adjustment, noise reduction

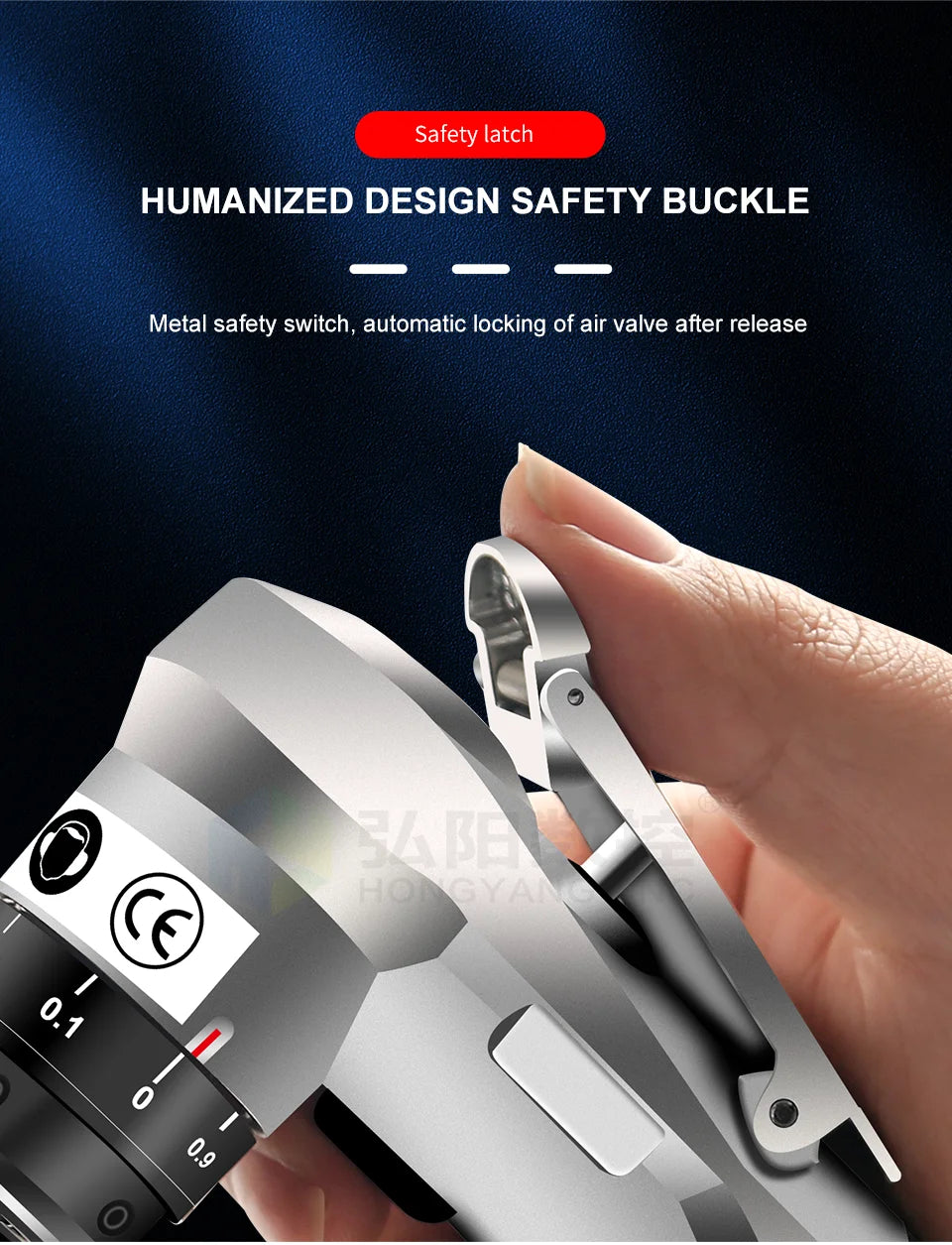

Humanized design safety buckle

Metal safety switch, automatic locking of air valve after release

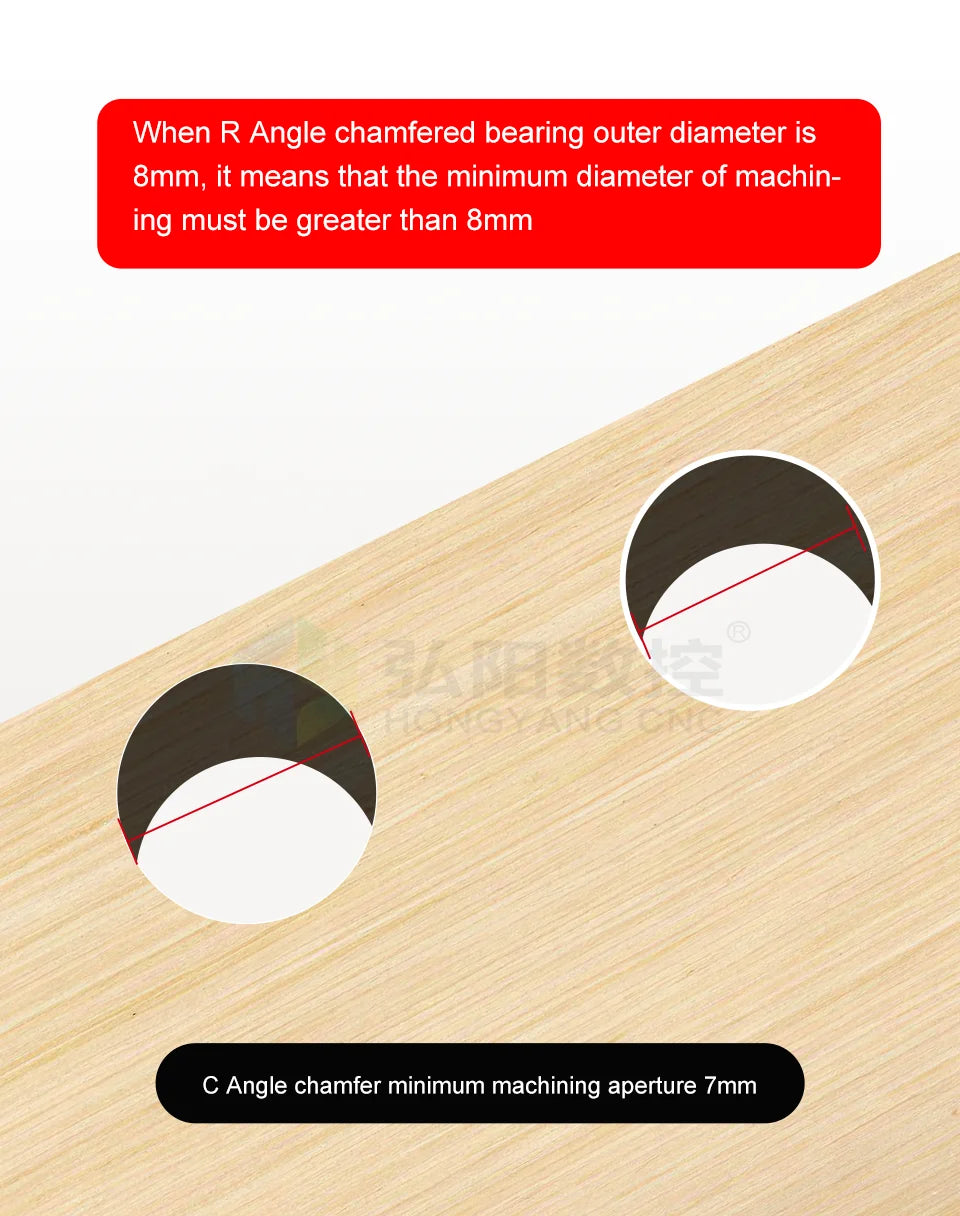

When R Angle chamfered bearing outer diameter is 8mm, it means that the minimum diameter of machining must be greater than 8mm

C Angle chamfer minimum machining aperture 7mm

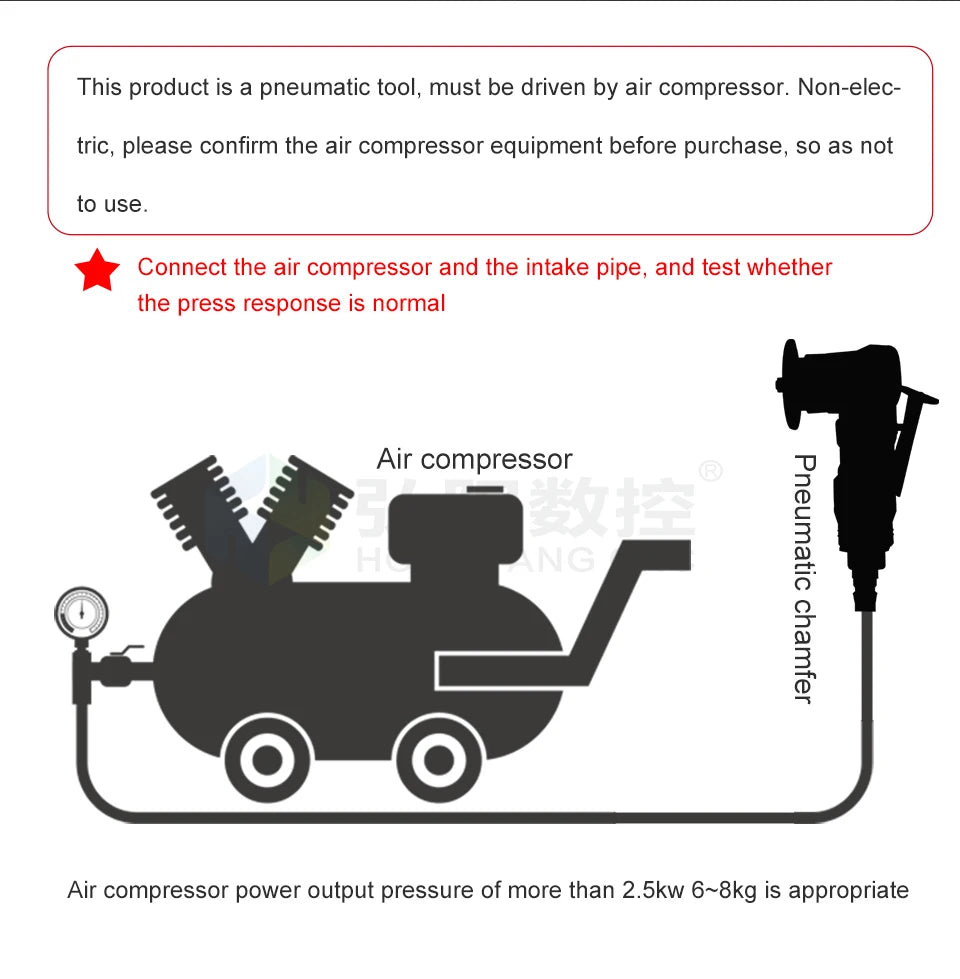

This product is a pneumatic tool, must be driven by air compressor. Non-electric, please confirm the air compressor equipment before purchase, so as not to use.

Connect the air compressor and the intake pipe, and test whether the press response is normal

Air compressor power output pressure of more than 2.5kw 6~8kg is appropriate

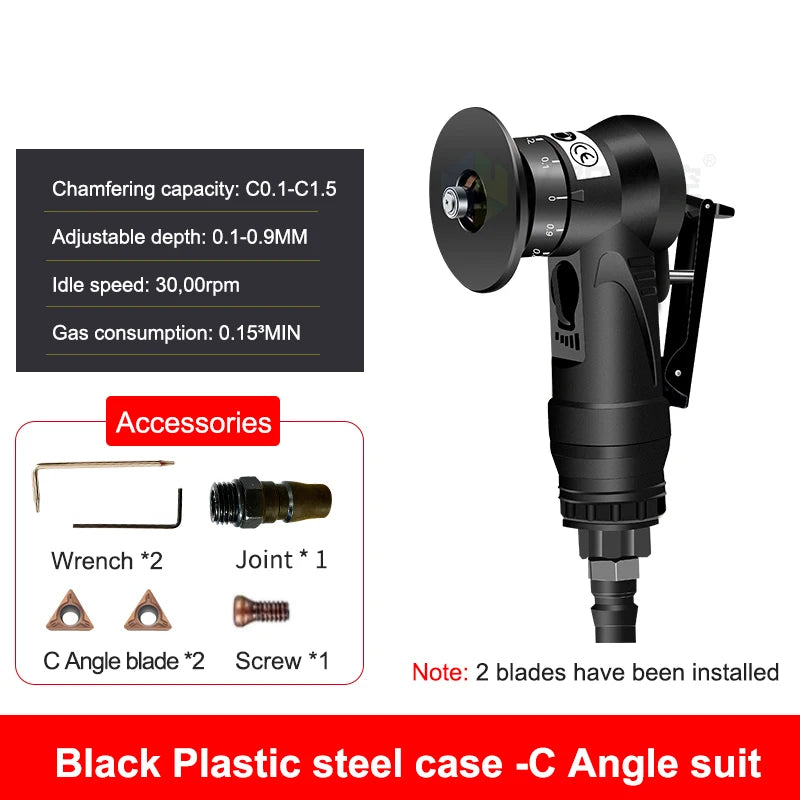

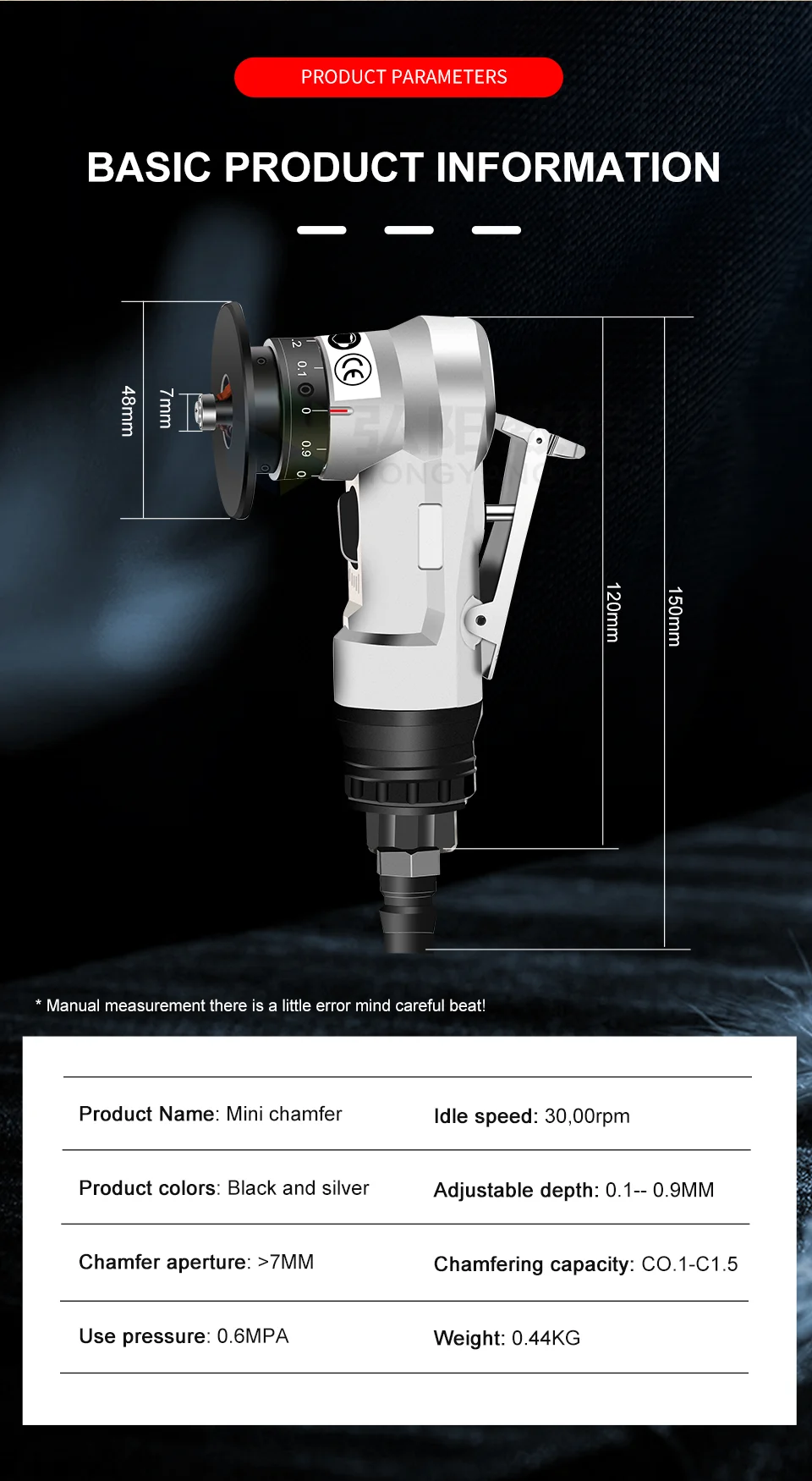

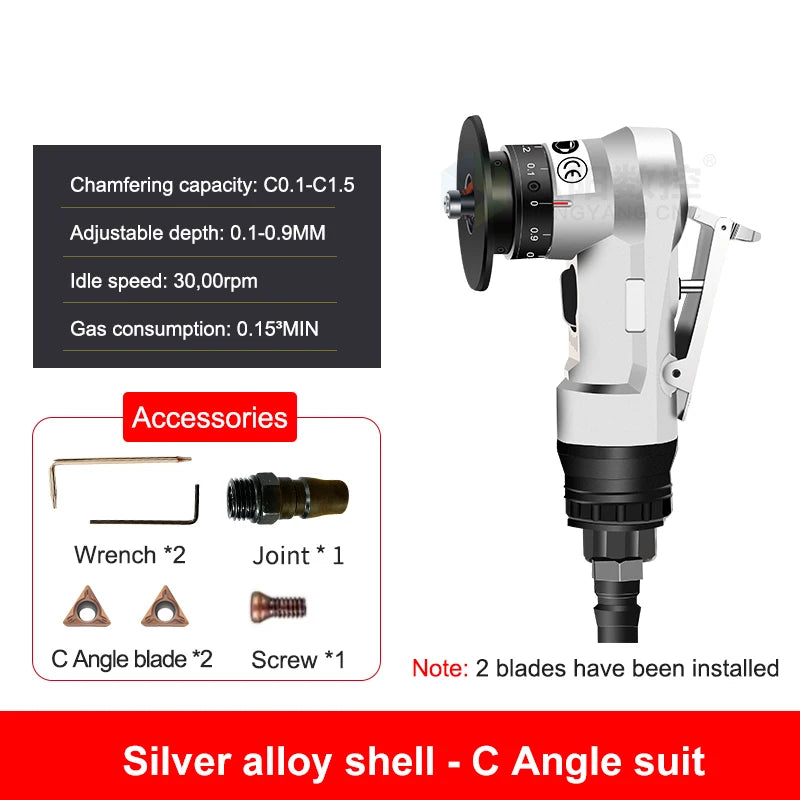

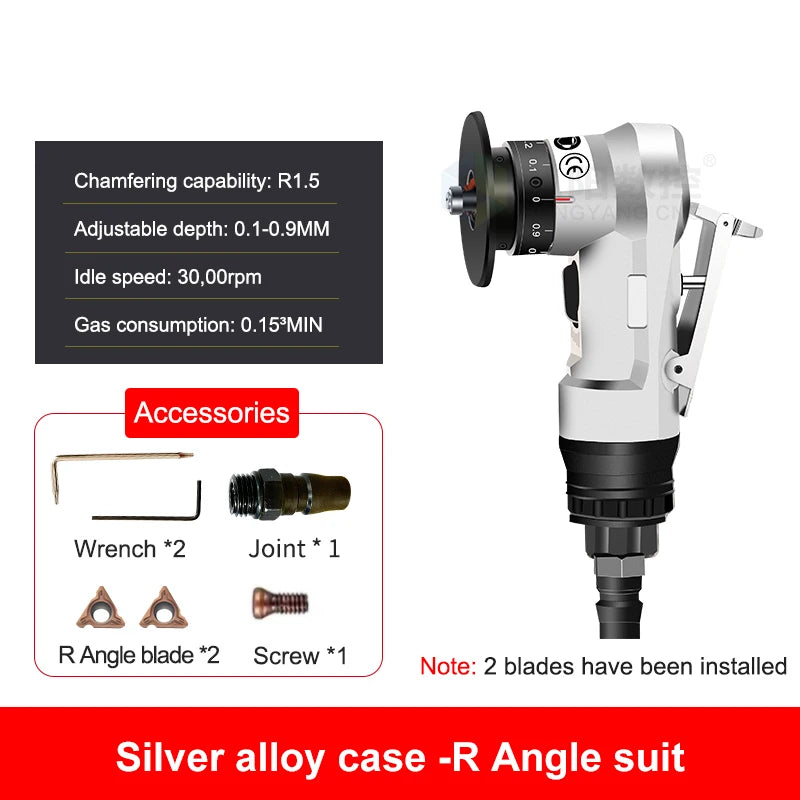

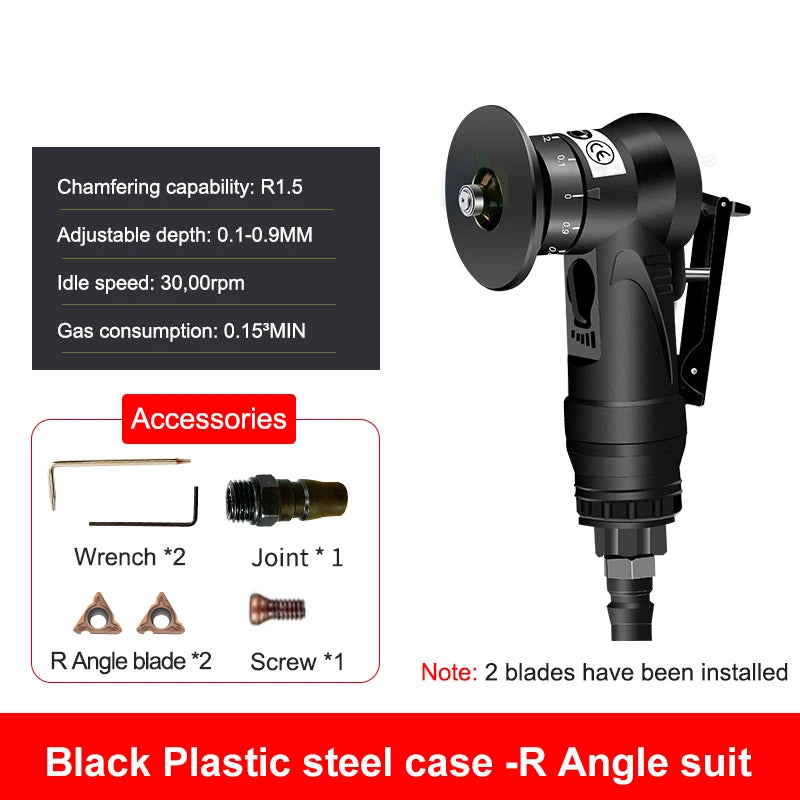

• Product Name: Mini chamfer

  Product colors: Black and silver

  Chamfer aperture: >7MM

  Use pressure: 0.6MPA

• Idle speed: 30,00rpm

  Adjustable depth: 0.1-- 0.9MM

  Chamfering capacity: CO.1-C1.5

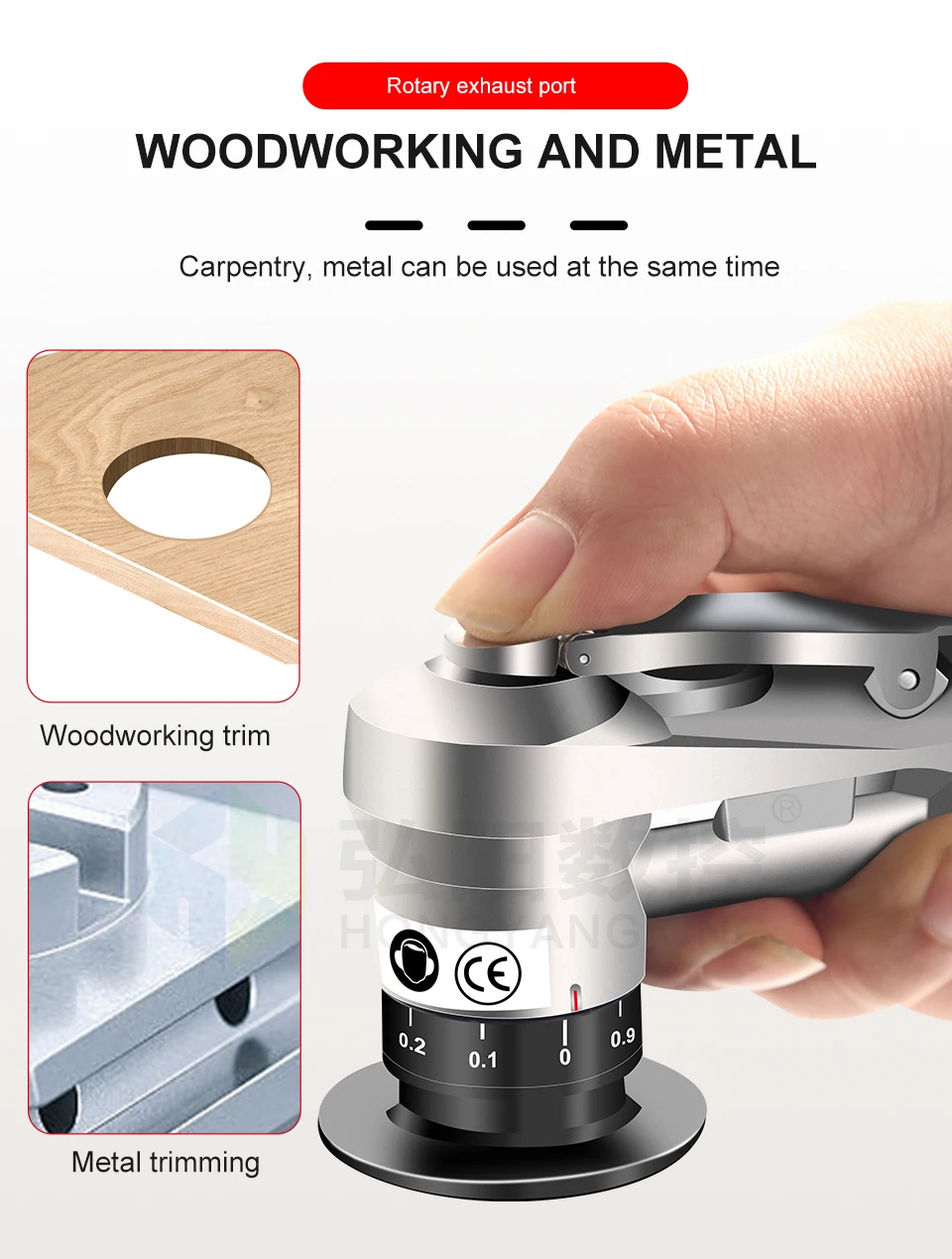

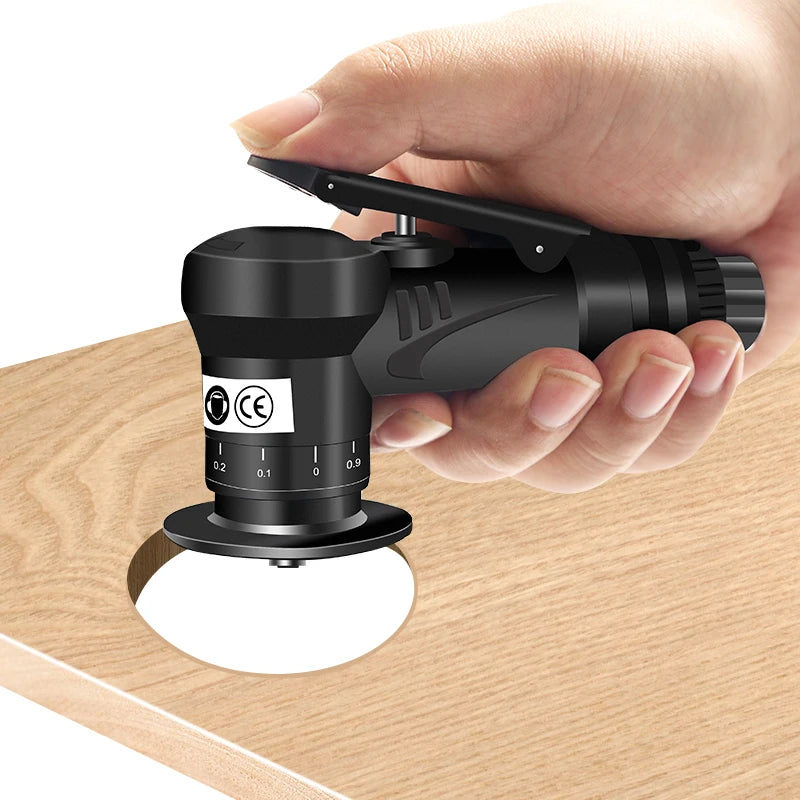

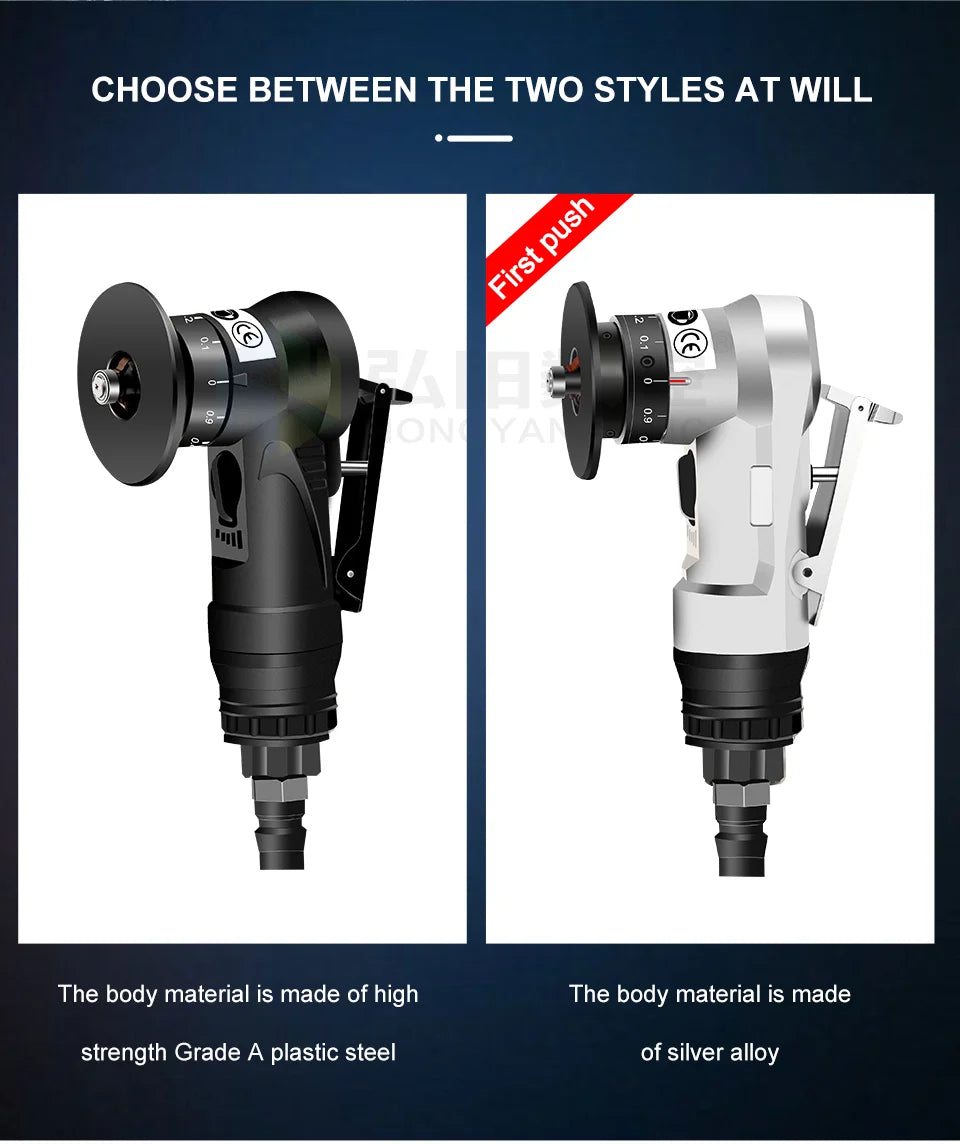

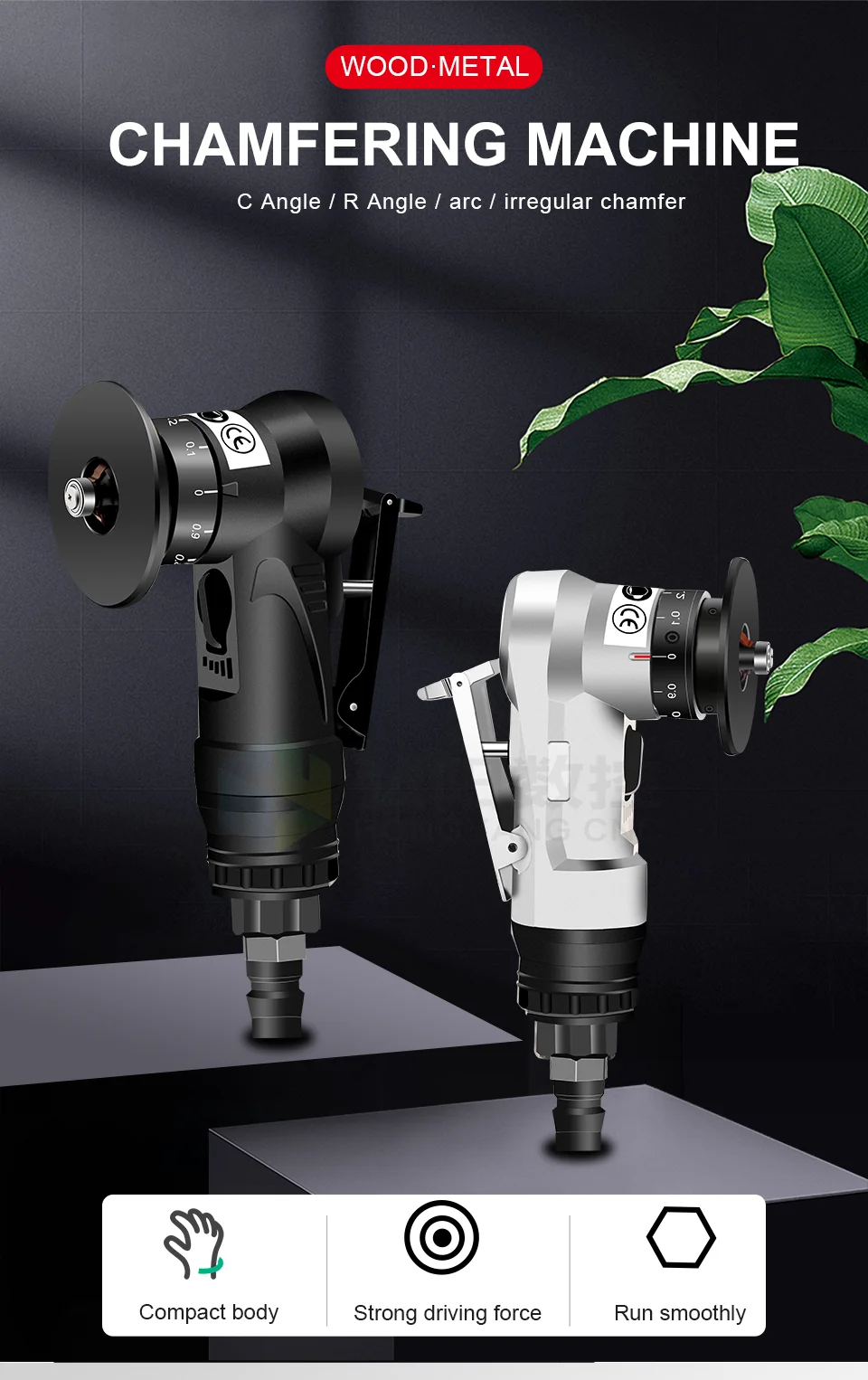

Woodworking and metal

Carpentry, metal can be used at the same time

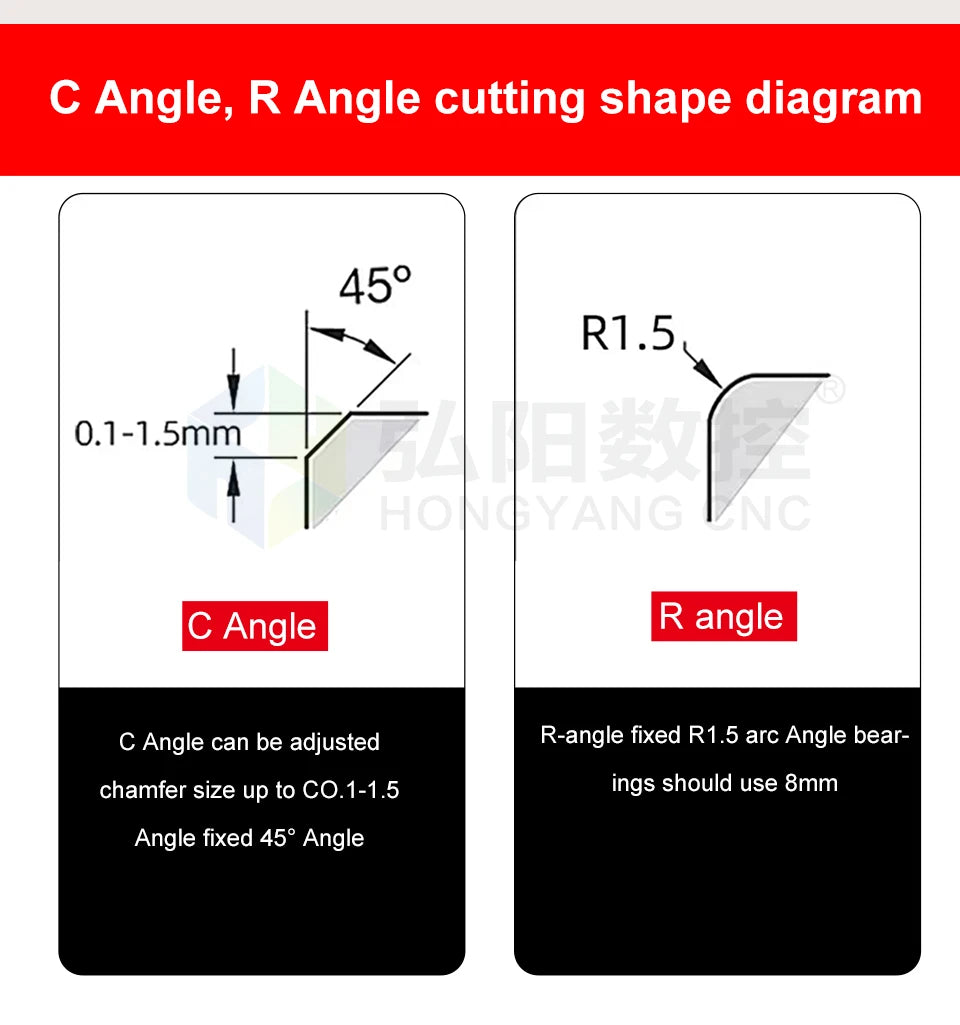

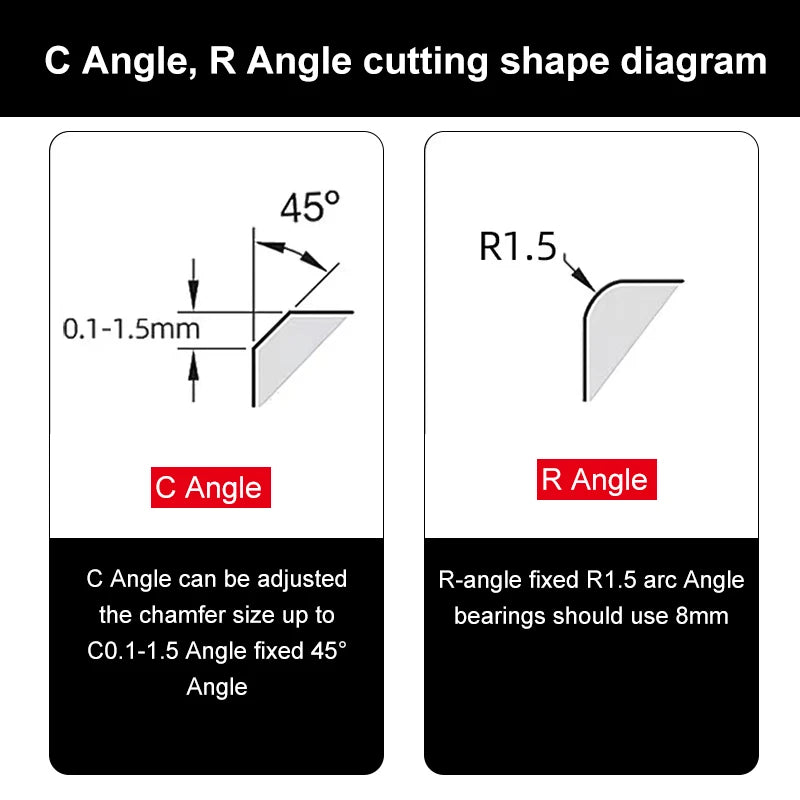

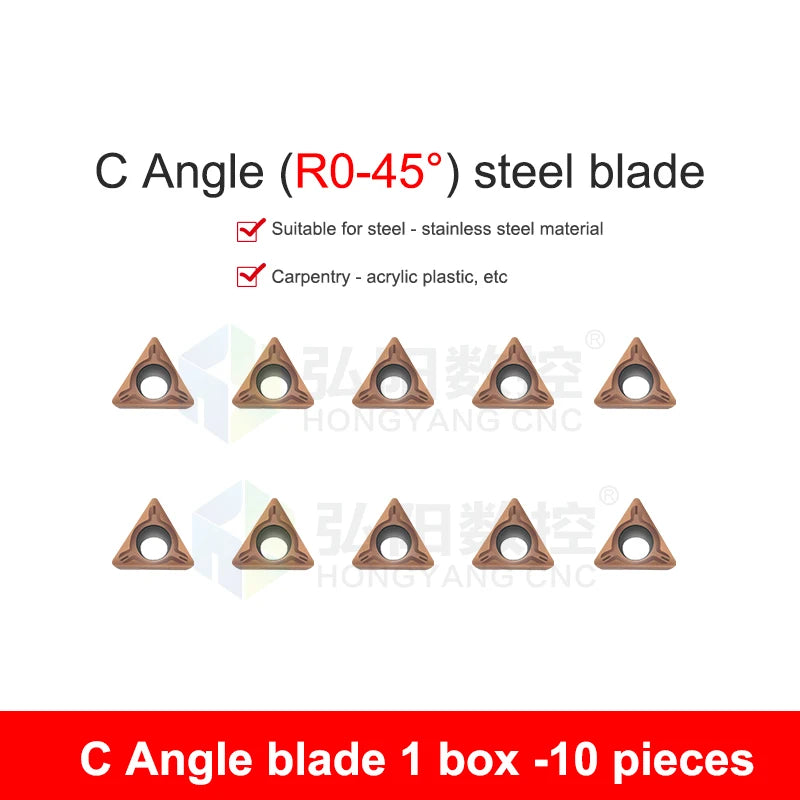

C Angle, R Angle cutting shape diagram

C Angle can be adjusted chamfer size up to CO.1-1.5 Angle fixed 45° Angle

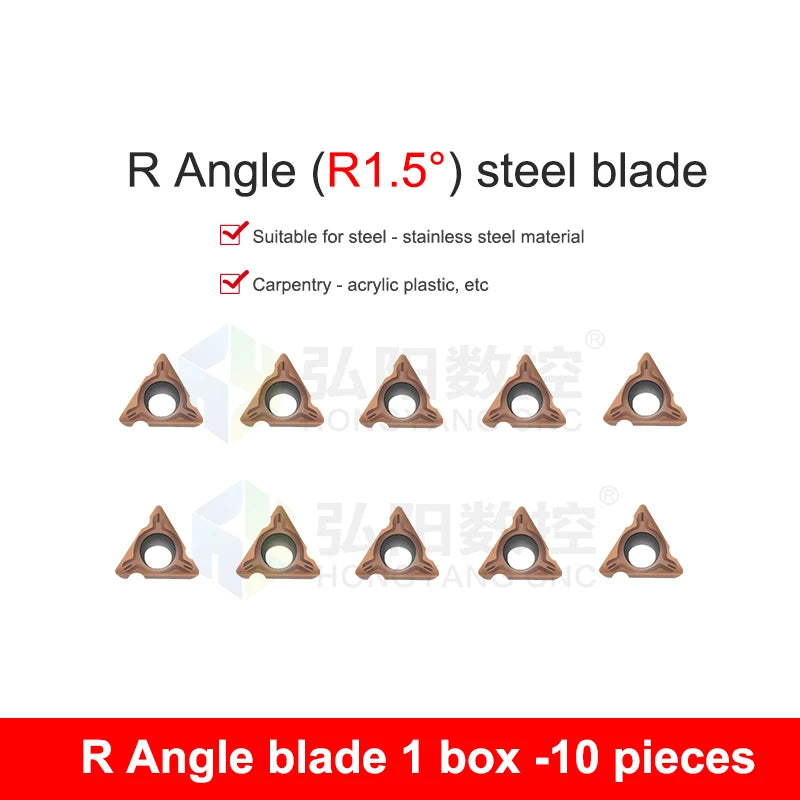

R-angle fixed R1.5 arc Angle bearings should use 8mm (7mm is installed on the machine by default, 8mm bearings need to be replaced)

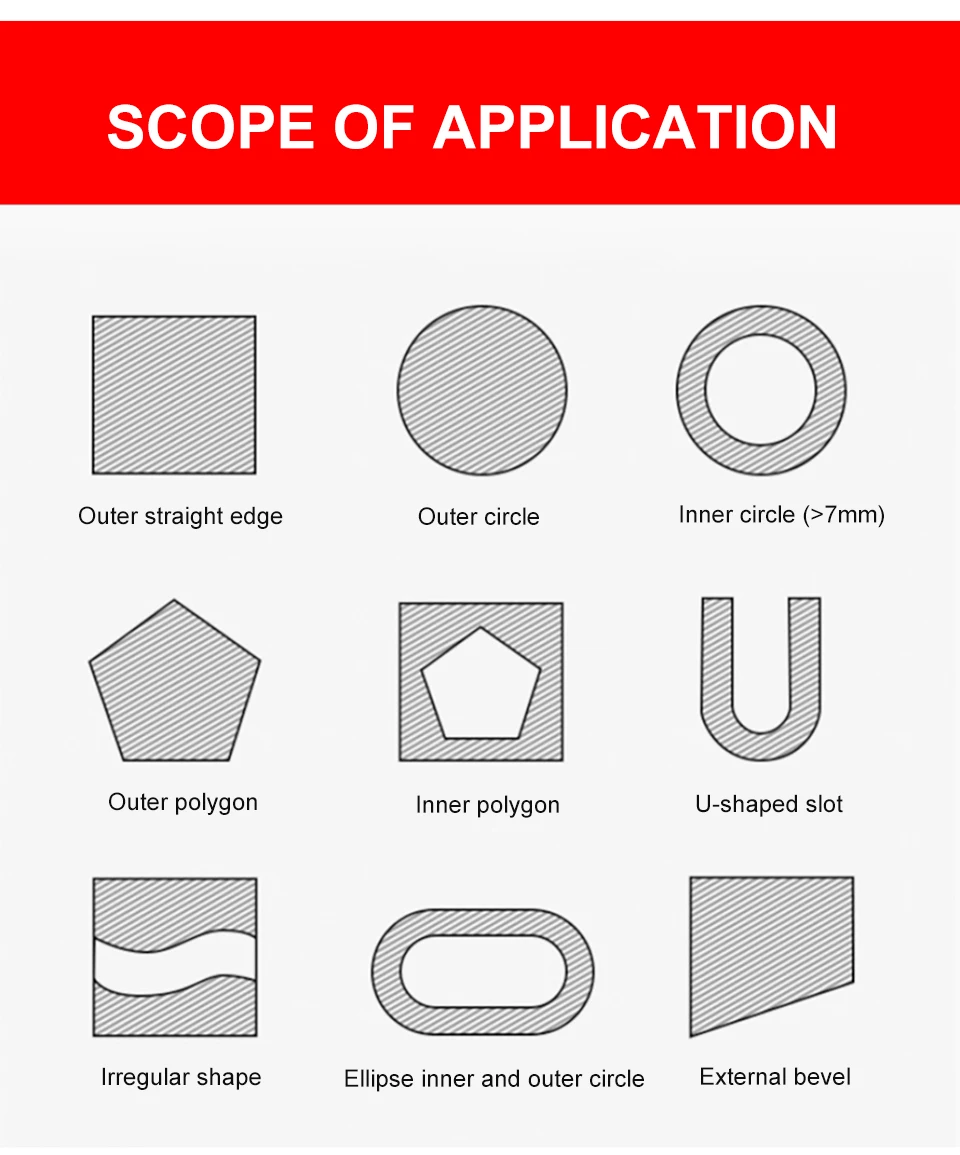

Scope of application

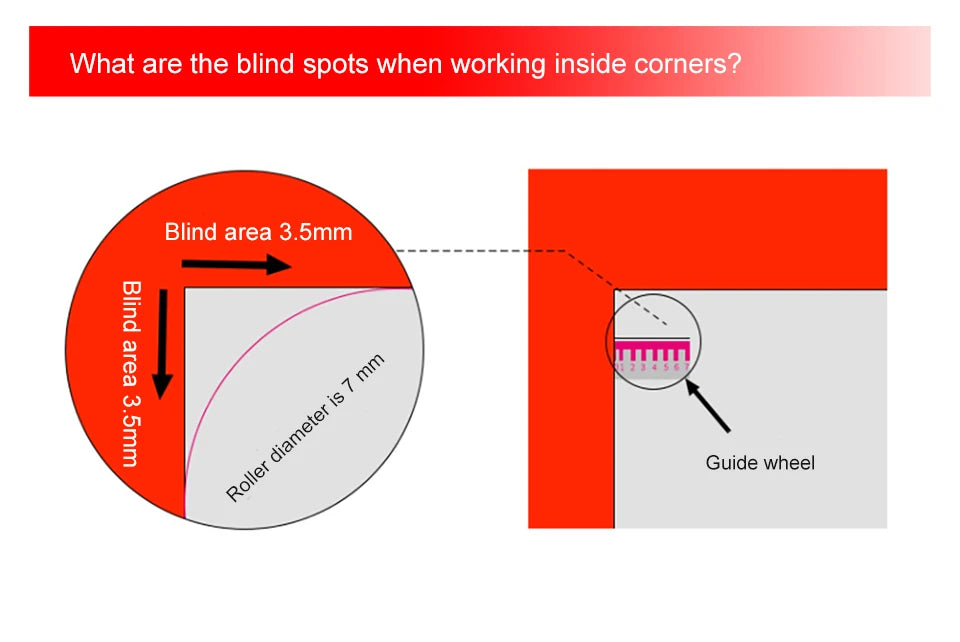

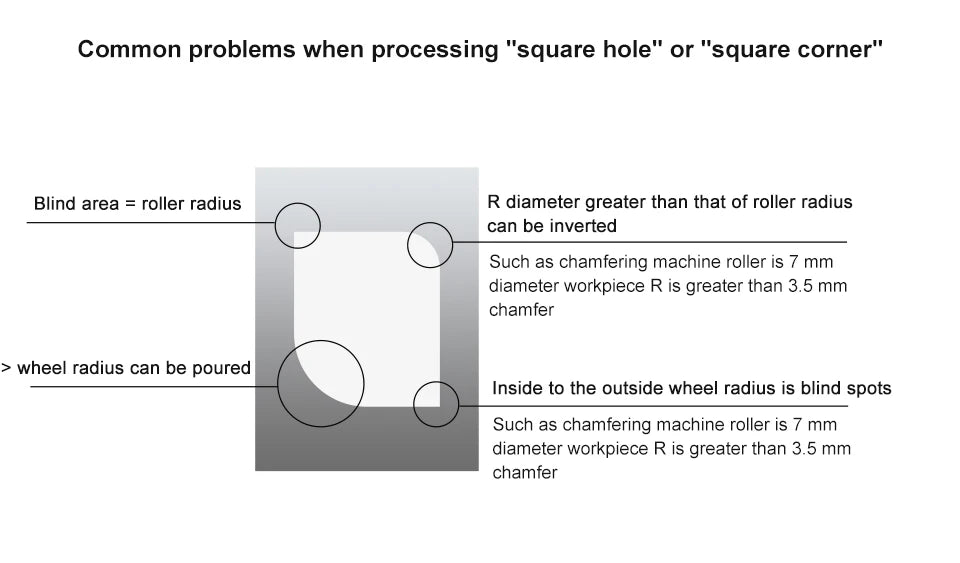

Common problems when processing "square hole" or "square corner"

Blind area = roller radius

> wheel radius can be poured

R diameter greater than that of roller radius
can be inverted：Such as chamfering machine roller is 7 mm diameter workpiece R is greater than 3.5 mm chamfer

Inside to the outside wheel radius is blind spots：Such as chamfering machine roller is 7 mm diameter workpiece R is greater than 3.5 mm chamfer

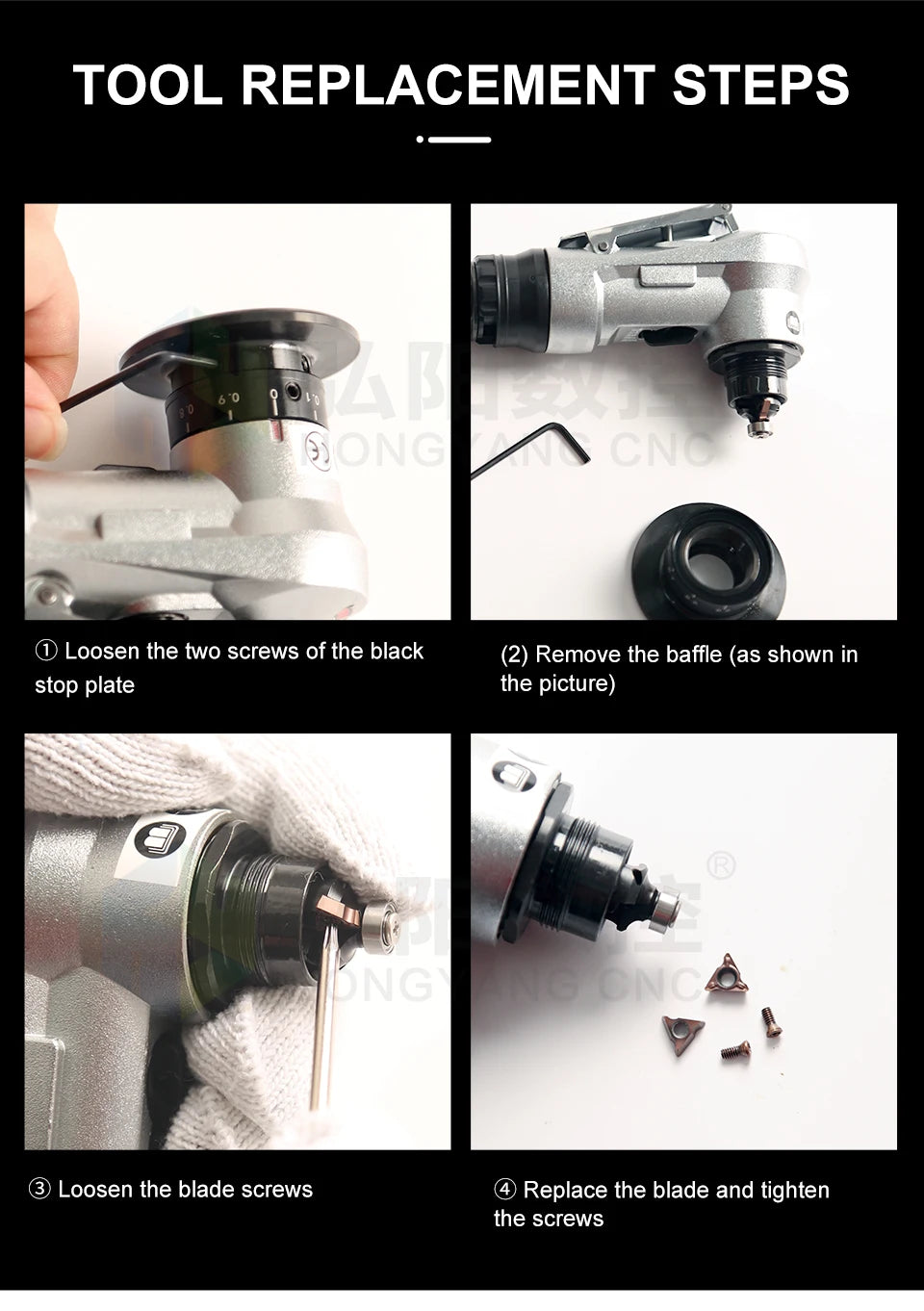

Tool replacement steps

① Loosen the two screws of the black stop plate

② Remove the baffle (as shown in the picture)

③ Loosen the blade screws

④ Replace the blade and tighten the screws

Matters needing attention

1. Work space

It is recommended to use the equipment in the factory workshop due to the noise caused by operation. It should not be used in residential areas to avoid disturbing the public.

2. Protection of personnel

Wear protective glasses or gloves to prevent debris from entering your eyes during chamfering. Do not wear ties, cuffs longer clothes, such as; When you wear long hair, wrap it to prevent your clothes and hair from getting involved in the device when it is running.

3. Precautions when using

Keep your fingers or other external objects away from the rotating area when the device is running to avoid injury.

4. Precautions after use

Turn off the air pump power switch, pull out the air pipe interface, air pump power plug. Do not use hands or tools to test whether the cutter is still rotating, so as to avoid injury to personnel and damage to equipment. Clean up and maintain after use.
