SPECIFICATIONS





Origin: Mainland China

Average Air Consumption: 4CFM

Certification: CE

Usage: Commercial Manufacture

Size: L274mm

DIY Supplies: Metalworking



specification:

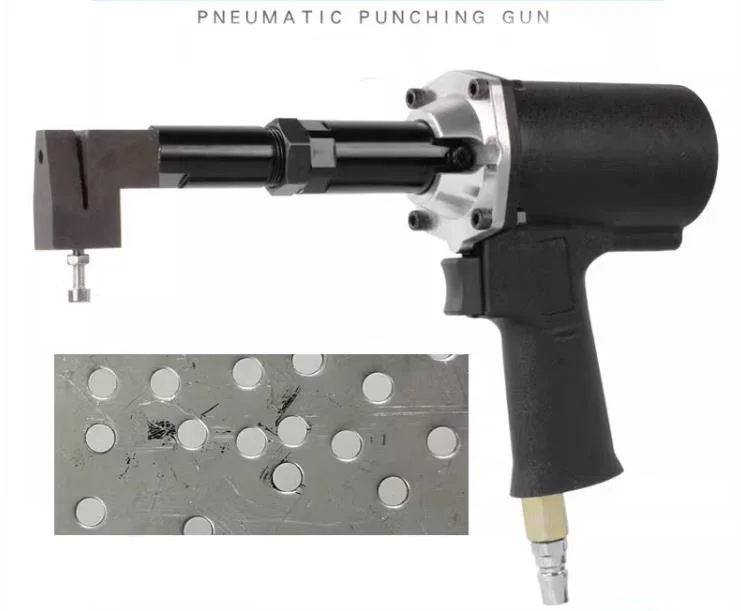

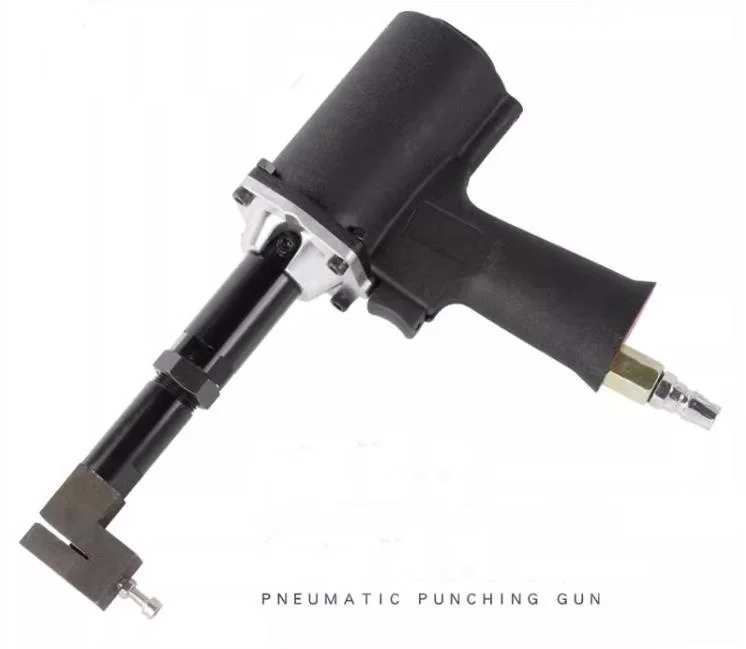

Pneumatic Air Hydraulic Punching Gun for alu. alloy stainless steel iron board holes, 2 styles



Punching hole size: dia.3.2mm/dia.4.2mm

max. thickness for different materials:

alu. alloy: less than 2.2mm

stainless steel: less than 1.0mm

iron: less than 1.5mm





Weight: 1.2kg

AV.Air Consump.: 4.Cfm

Air Inlet NPTF: 1/4"

Pressure: 7-8kg





Note: Hydraulic oil is not included in the set.
