Description
Product Description

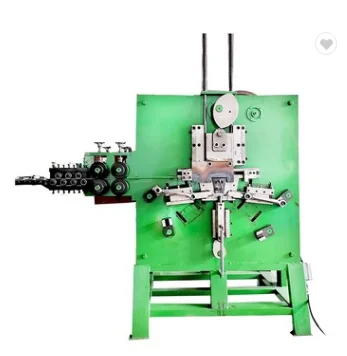

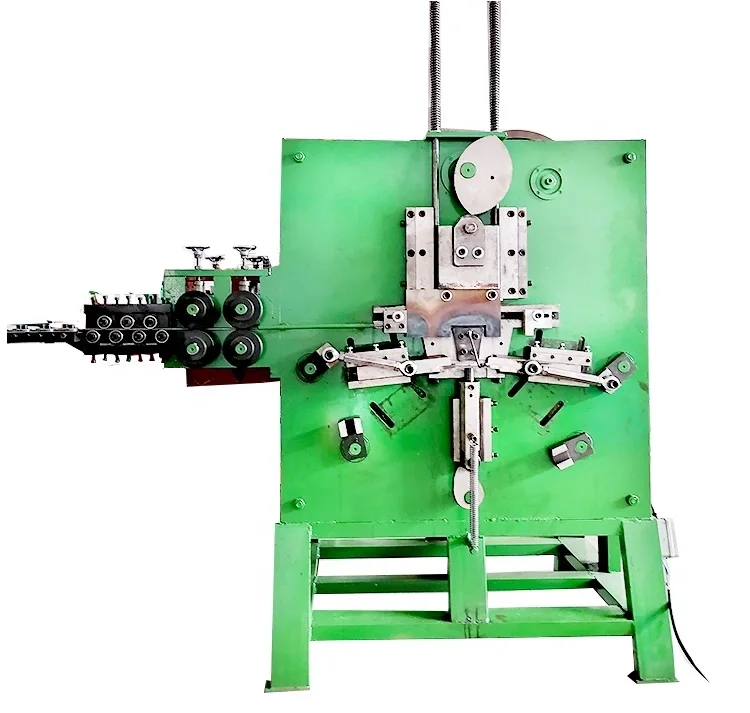

The main application of automatic wire buckle making machine:

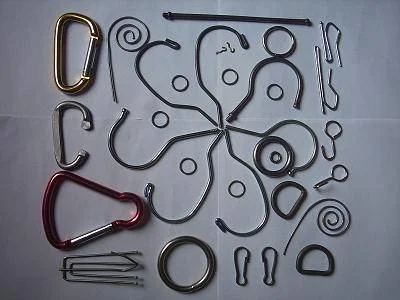

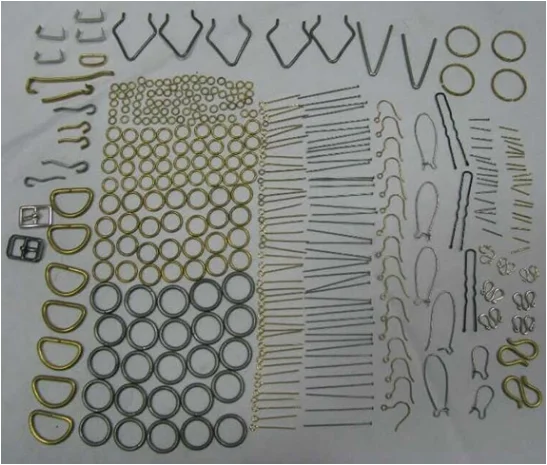

Automatic steel wire bending machine can be made into D shape, L shape, C shape, U shape, M shape,
W shape and so on.It is suitable for a wide range of industries and easy to operate. The same machine
can make different products only by changing grinding tools.It is specially used for all kinds of wire
bending forming, i.e. steel wire, steel wire, iron wire, copper wire, copper wire bending angle, bending,
looping, folding frame bending equipment according to user requirements.
It is widely used in the bending of automobile seat accessories, household hardware accessories,
kitchen and bathroom pendant accessories, supermarket shelf accessories, handicrafts, electronic
products, toys, electrical appliances, sports equipment, stationery, instrument, instrument and hair
accessories Piece field.
Advantages: with straightening, cutting, no interference, push bending, one-time molding, unmanned
operation, efficiency is 4-5 times of the traditional model.
W shape and so on.It is suitable for a wide range of industries and easy to operate. The same machine
can make different products only by changing grinding tools.It is specially used for all kinds of wire
bending forming, i.e. steel wire, steel wire, iron wire, copper wire, copper wire bending angle, bending,
looping, folding frame bending equipment according to user requirements.
It is widely used in the bending of automobile seat accessories, household hardware accessories,
kitchen and bathroom pendant accessories, supermarket shelf accessories, handicrafts, electronic
products, toys, electrical appliances, sports equipment, stationery, instrument, instrument and hair
accessories Piece field.
Advantages: with straightening, cutting, no interference, push bending, one-time molding, unmanned
operation, efficiency is 4-5 times of the traditional model.
Automatic wire buckle making machine features:
1. This machine is equipped with production setting, automatic control function (automatic stop
when the output reaches the set value), manual cranking function is set, it is more convenient to
adjust and test the jig, and the gear type thimble mechanism is adopted, which pushes the
material (release) safely and reliable, can be divided into multiple levels of push materials.
2. The buckle machine hand pump can supply oil to each lubrication point, lubrication is
convenient, and the effect is good. The gear transmission line is adopted, and the wire feeding
length is accurate, easy to operate, and easy to adjust.
3. The buckle machine adopts gear transmission, which has high transmission efficiency, low
power loss and good self-locking performance. The wire is fed by the friction type wire feeding
mechanism, and the locking (clamping) action is reliable, the wire feeding length is finely
adjusted, the length is accurate, the speed is high, and the convenience is convenient.4. The large-size gear of the buckle
machine is made of pearlitic ductile iron (QT600-3) and heat
treated. Its hardness is HB280-320. The guide rail is made of alloy wear-resistant cast iron and
heat treated for good wear resistance. The gear adopts 40Cr forging blank, and is quenched and
tempered and the tooth surface is high (medium) frequency quenching treatment, the hardness
reaches HRC52-55. The shafts are made of 45# or 40Cr steel and are quenched and tempered,
which has high comprehensive performance. The wire feeding wheel and the straightening
wheel are all made of high quality alloy steel and heat treated by vacuum. The hardness reaches
HRC58-62, which has high strength and good wear resistance.
when the output reaches the set value), manual cranking function is set, it is more convenient to
adjust and test the jig, and the gear type thimble mechanism is adopted, which pushes the
material (release) safely and reliable, can be divided into multiple levels of push materials.
2. The buckle machine hand pump can supply oil to each lubrication point, lubrication is
convenient, and the effect is good. The gear transmission line is adopted, and the wire feeding
length is accurate, easy to operate, and easy to adjust.
3. The buckle machine adopts gear transmission, which has high transmission efficiency, low
power loss and good self-locking performance. The wire is fed by the friction type wire feeding
mechanism, and the locking (clamping) action is reliable, the wire feeding length is finely
adjusted, the length is accurate, the speed is high, and the convenience is convenient.4. The large-size gear of the buckle
machine is made of pearlitic ductile iron (QT600-3) and heat
treated. Its hardness is HB280-320. The guide rail is made of alloy wear-resistant cast iron and
heat treated for good wear resistance. The gear adopts 40Cr forging blank, and is quenched and
tempered and the tooth surface is high (medium) frequency quenching treatment, the hardness
reaches HRC52-55. The shafts are made of 45# or 40Cr steel and are quenched and tempered,
which has high comprehensive performance. The wire feeding wheel and the straightening
wheel are all made of high quality alloy steel and heat treated by vacuum. The hardness reaches
HRC58-62, which has high strength and good wear resistance.
1, This machine is equipped with production setting, automatic control function (automatic stop when the output reaches the set
value), manual cranking function is set, it is more convenient to adjust and test the jig, and the gear type thimble mechanism is
adopted, which pushes the material (release) safely and reliable, can be divided into multiple levels of push materials.
2, The buckle machine hand pump can supply oil to each lubrication point, lubrication is convenient, and the effect is good. The
gear transmission line is adopted, and the wire feeding length is accurate, easy to operate, and easy to adjust.
3, The buckle machine adopts gear transmission, which has high transmission efficiency, low power loss and good self-locking
performance. The wire is fed by the friction type wire feeding mechanism, and the locking (clamping) action is reliable, the wire
feeding length is finely adjusted, the length is accurate, the speed is high, and the convenience is convenient.
4, The large-size gear of the buckle machine is made of pearlitic ductile iron (QT600-3) and heat treated. Its hardness is
HB280-320. The guide rail is made of alloy wear-resistant cast iron and heat treated for good wear resistance. The gear adopts
40Cr forging blank, and is quenched and tempered and the tooth surface is high (medium) frequency quenching treatment, the
hardness reaches HRC52-55. The shafts are made of 45# or 40Cr steel and are quenched and tempered, which has high comprehensive
performance. The wire feeding wheel and the straightening wheel are all made of high quality alloy steel and heat treated by
vacuum. The hardness reaches HRC58-62, which has high strength and good wear resistance.
value), manual cranking function is set, it is more convenient to adjust and test the jig, and the gear type thimble mechanism is
adopted, which pushes the material (release) safely and reliable, can be divided into multiple levels of push materials.
2, The buckle machine hand pump can supply oil to each lubrication point, lubrication is convenient, and the effect is good. The
gear transmission line is adopted, and the wire feeding length is accurate, easy to operate, and easy to adjust.
3, The buckle machine adopts gear transmission, which has high transmission efficiency, low power loss and good self-locking
performance. The wire is fed by the friction type wire feeding mechanism, and the locking (clamping) action is reliable, the wire
feeding length is finely adjusted, the length is accurate, the speed is high, and the convenience is convenient.
4, The large-size gear of the buckle machine is made of pearlitic ductile iron (QT600-3) and heat treated. Its hardness is
HB280-320. The guide rail is made of alloy wear-resistant cast iron and heat treated for good wear resistance. The gear adopts
40Cr forging blank, and is quenched and tempered and the tooth surface is high (medium) frequency quenching treatment, the
hardness reaches HRC52-55. The shafts are made of 45# or 40Cr steel and are quenched and tempered, which has high comprehensive
performance. The wire feeding wheel and the straightening wheel are all made of high quality alloy steel and heat treated by
vacuum. The hardness reaches HRC58-62, which has high strength and good wear resistance.
Specification
|
model
|
Wire diameter range
|
Maximum wire length
|
Production speed
|
Motor Power
|
Suitable range
|
|
120 buckle making machine
|
≤Ф3.5mm
|
120mm
|
80~130 pieces/min
|
0.75kw
|
Suitable for iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), making square,
round, hexagonal, oval and other irregular shapes and various flat buckles |
|
180 buckle making machine
|
≤Ф4.5mm
|
180mm
|
80~120 pieces/min
|
0.75kw
|
|
|
230 buckle making machine
|
≤Ф6.0mm
|
230mm
|
40~70 pieces/min
|
1.5kw
|
|
|
320 buckle making machine
|
≤Ф8.0mm
|
320mm
|
30~45 pieces/min
|
2.2kw
|
|
|
600 buckle making machine
|
≤Ф7.0mm
|
600mm
|
30~45 pieces/min
|
2.2kw
|
|
|
Hook once molding machine
|
≤Ф5.0mm
|
|
50 pieces/min
|
1.5kw
|
|
|
Hanger hook machine
|
≤Ф5.0mm
|
|
40~50 pieces/min
|
1.5kw
|
|
|
Canister headphones
|
≤Ф4.5mm
|
|
35 pieces/min
|
1.5kw
|
|
|
Shelf hook buckle machine
|
≤Ф5.0mm
|
|
40 pieces/min
|
1.5kw
|
|
|
Model
|
MACEX-DKJ180
|
|
|
Wire range
|
≤Ф4.5mm
|
|
|
Wire feeding length
|
According to user settings
|
|
|
Motor power
|
0.75kw
|
|
|
Maximum wire feeding length
|
≤180mm
|
|
|
Production speed
|
80~120 pieces/min
|
|
|
Maximum cut length
|
850mm
|
|
|
Straightening shaft speed
|
1946.5 r/min
|
|
|
Gas source
|
0.4-0.6Mpa
|
|
|
dimension
|
L2000*W800*H1000mm
|
|
|
Machine weight
|
2000kg
|
|
|
Standard configuration: one of the wire feeder
|
|
|
|
Feeder wheel
|
3
|
|
|
Cutter + cutter holder
|
1
|
|
|
Rotating head
|
2
|
|
|
Toolbox
|
|
|
|
Optional configuration
|
|
|
|
Wire feeder: 500kgs / 1000kgs / 1500kgs
|
|
|
